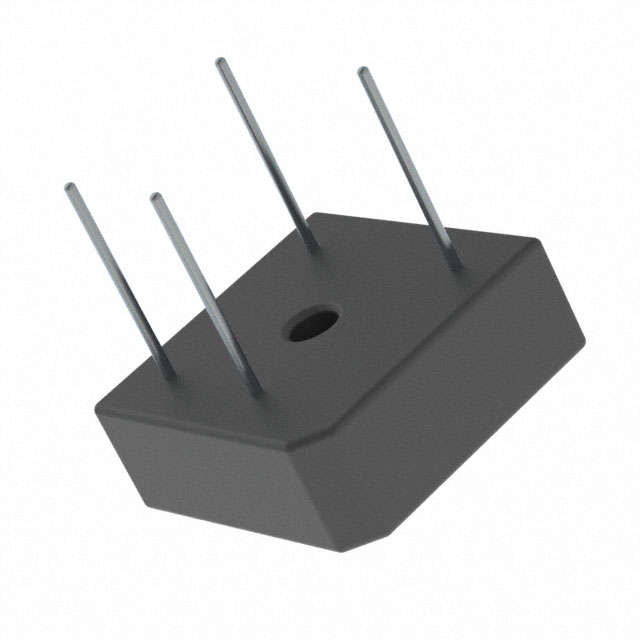

The GBPC1210W is a single phase bridge rectifier from On Semiconductor, part of the GBPC12 series. It features a maximum repetitive reverse voltage (VRRM) of 1000V and an average rectified forward current (IF(AV)) of 12A at TC=55°C. The device can withstand a non-repetitive peak forward surge current (IFSM) of 300A for an 8.3 ms half-sine-wave. Maximum forward voltage drop (VF) is 1.1V at 6A per bridge. Reverse current (IR) is limited to 5µA at 25°C and 500µA at 125°C. Total capacitance is 180pF typical per leg at 4V, 1MHz.
Thermal management includes an integrally molded heat-sink providing a junction-to-case thermal resistance (RθJC) of 1.5°C/W and a total power dissipation rating of 83.3W. Operating junction temperature range is -55°C to 150°C. The part is housed in a through-hole GBPC-W package (4-Square, GBPC-W) with silver solderable terminals (per MIL-STD-202 method 208).
This device is Pb-Free and UL certified (UL #E258596). It is suitable for general purpose AC-to-DC rectification in power supplies, industrial equipment, and high current bridge applications. Note that the available datasheet covers the GBPC12/15/25/35 family; verification of specific GBPC1210W parameters is recommended for critical designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.62 | $5.62 |
| 10+ | $2.96 | $2.96 |
| 100+ | $2.95 | $2.95 |
| 500+ | $2.45 | $2.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive reverse voltage is 1000V, as indicated by the '10' suffix in the part number.
The average rectified forward current (IF(AV)) is 12A at a case temperature of 55°C.
The maximum forward voltage drop is 1.1V at a forward current of 6A per bridge element.
It uses a through-hole 4-Square, GBPC-W package (supplier device package: GBPC-W).
The surge current rating is 300A for an 8.3 ms single half-sine-wave.
The operating junction temperature range is -55°C to 150°C.
Yes, it is Pb-Free and UL certified (UL #E258596). RoHS and REACH statuses are unverified.
