| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Relative Humidity | |
| Storage Temperature | |
| Turn On Time | |
| Type | |
| Voltage | |
| Width |

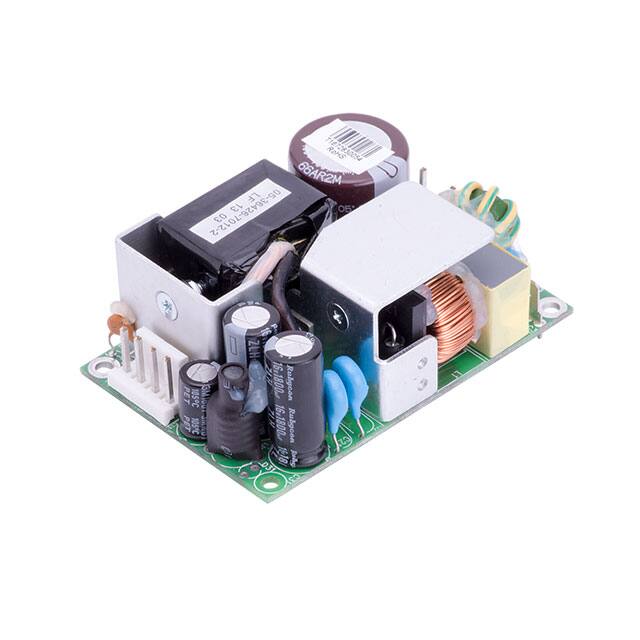

The SL Power Electronics GB60 series, including the GB60S48K model, offers robust AC-DC power conversion solutions. This industrial-grade converter delivers up to 60 Watts of continuous output power with a universal input range of 90 to 264 VAC.
Key electrical specifications include a maximum output current of 1.25A and an efficiency of 88% typical. The unit features comprehensive protection mechanisms such as overvoltage, overload, and short circuit protection, all operating in a hiccup mode. It is designed for reliable operation across a wide temperature range from -10°C to +70°C.
The GB60S48K is built with a compact form factor, measuring 76.2mm x 50.8mm x 25.4mm, and features a chassis mount type, making it suitable for various integration needs, including 1U applications. It meets stringent EMI/EMC compliance standards, including EN55011/22 Class B and FCC Part 15 Class B for conducted emissions.
This converter is suitable for ITE (Commercial) applications and comes with a 3-year warranty, underscoring its reliability and suitability for demanding environments.
The GB60S48K provides up to 60 W continuous output power.
The input voltage range is 90 to 264 VAC.
The typical efficiency is 88%.
The dimensions are 76.2mm x 50.8mm x 25.4mm.
The operating temperature range is -10°C to +70°C.
Yes, it features self-recovering overvoltage protection.
It meets standards including EN55011/22 Class B, FCC Part 15 Class B, and EN61000-4-2.
