| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Brand | |
| Compliance | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Product Type | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

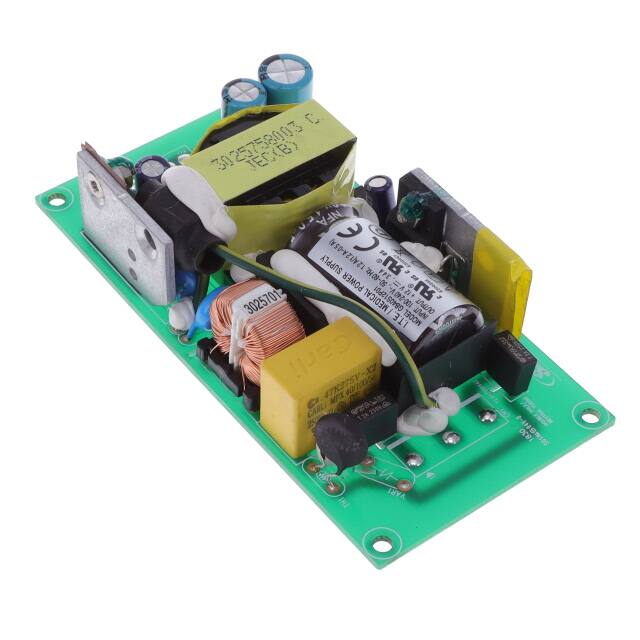

The SL Power GB40S12P01 is a 40-watt AC-DC switching power supply in an open-frame PCB-mount package. It delivers a single regulated 12VDC output at 3.4A from a universal input of 100-240VAC at 47-63Hz. The unit provides 4kVAC input-to-output isolation and achieves 88% efficiency. Designed for medical and industrial applications, it complies with CSA/EN/IEC/UL 60601-1 and 66368-1 safety standards. The compact dimensions of 101.6mm x 50.8mm x 22.2mm allow integration into space-constrained equipment. Operating temperature range is -25°C to +70°C. The GB40 series offers reliable power conversion for a variety of off-board power supply needs.
100 VAC to 240 VAC at 47-63 Hz.
12 VDC at 3.4 A.
-25°C to +70°C.
4 kVAC.
88%.
CSA/EN/IEC/UL 60601-1 and 66368-1.
101.6mm x 50.8mm x 22.2mm.
