| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

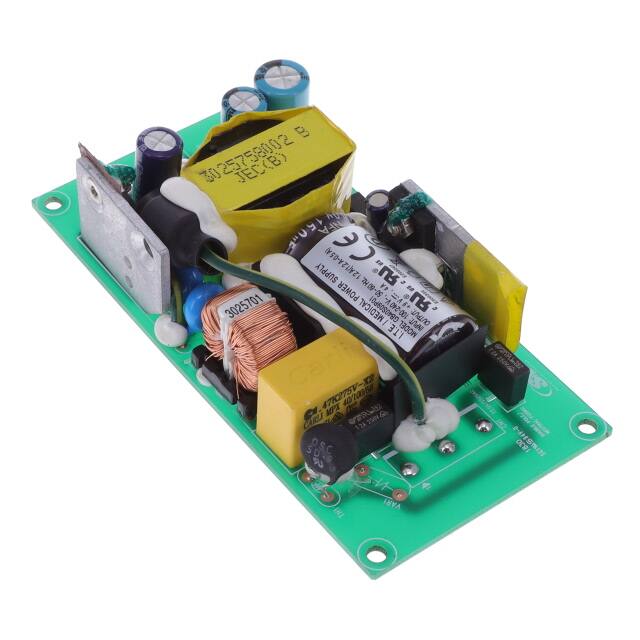

This SL Power Electronics GB40S09P01 is an open frame AC/DC converter designed for ITE (Commercial) and Medical applications. It delivers 36W of power with a single output of 4A at 9V. The converter boasts a universal input and an efficiency of 88%.
Key features include 4kV voltage isolation and operation within a temperature range of -25°C to 70°C with derating. It is designed for chassis mounting and meets standards such as 60601-1 and 62368-1. The dimensions are 101.6mm x 50.8mm x 20.6mm.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though this data is of low confidence due to lack of verification.
9V
88%
4kV
CE, cURus, DEMKO
-25°C to 70°C with derating
Chassis Mount
36W
