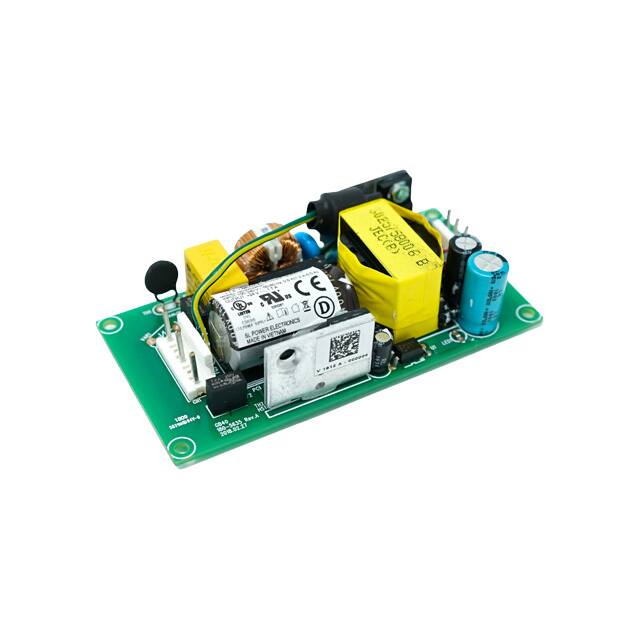

The SL Power GB40 Series AC to DC converter, model GB40S05K01, delivers 40 Watts of power in an open frame, chassis mount package. It operates with a universal input voltage range of 90 to 264 VAC and offers a typical efficiency of 88%. This converter is designed for demanding medical and industrial applications, meeting stringent safety and EMC standards.
Key electrical specifications include a maximum power output of 40W, a 5V output current capability, and isolation voltages of up to 4000 VAC. The unit provides overcurrent, overvoltage, and overtemperature protection. Its compact dimensions (101.6mm x 48.3mm x 25.4mm) allow for easy integration into various systems.
The GB40S05K01 is approved to CSA/EN/IEC/UL62368-1 and CSA/EN/IEC/UL60601-1 standards, and meets heavy industrial EMC levels. It is suitable for applications requiring reliable power conversion in challenging environments.
90 to 264 VAC.
5V.
88% typical.
-25°C to 70°C with derating.
Chassis mount.
101.6mm x 48.3mm x 25.4mm (4.00" x 1.90" x 1.00").
Overcurrent protection (130-160% of rated output, hiccup mode) and overvoltage protection (120-150% of nominal output, hiccup mode).
