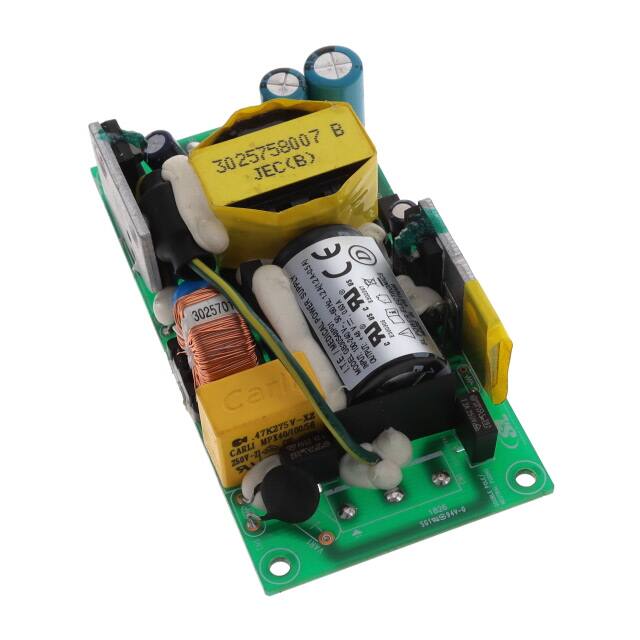

The SL Power Electronics GB30S48P01 is a 30-watt AC to DC converter designed for both medical and industrial applications. It offers a single 48V output and accepts a universal input voltage range of 90 to 264 VAC.
This converter boasts high efficiency, meeting DOE Level VI standards, and operates with a convection-cooled power delivery. It is approved to CSA/EN/IEC/UL62368-1 and CSA/EN/IEC/UL60601-1 standards, ensuring safety and reliability for critical applications. The GB30S48P01 meets heavy industrial and IEC60601-1-2 4th Edition levels of EMC, with Class B radiated and conducted emissions performance.
Key electrical specifications include a typical efficiency of 88%, low no-load input power of less than 0.1W, and robust protection features such as over-temperature, short circuit, overload, and overvoltage protection. The unit is designed for reliability with an MTBF greater than 1,000,000 hours and an E-cap life exceeding 8 years.
The GB30S48P01 comes in an open frame, chassis mount package measuring 91.9mm x 48.0mm x 20.9mm. It operates within a temperature range of -25°C to 70°C with derating. This converter is suitable for integration into systems requiring dependable power conversion for demanding environments.
90 to 264 VAC universal input.
-25°C to +70°C with derating.
Open frame, chassis mount.
48V DC.
4000 VAC input to output (2 MOPP) and 1500 VAC input to ground / output to ground (1 MOPP).
>1,000,000 hours at full load, 110/220 VAC input, 25°C ambient per Telcordia 332 issue 6.
3 years.
