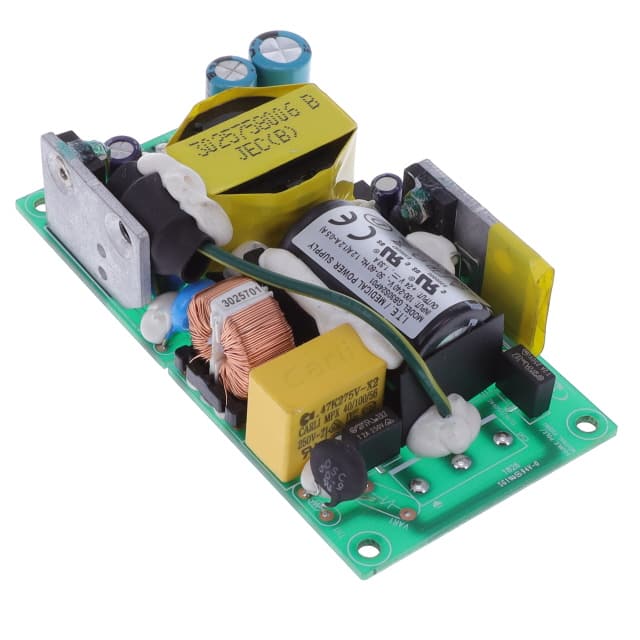

The GB30S24P01 is an AC/DC converter from SL Power Electronics that delivers a regulated 24V output at 32W. It operates from a universal input voltage range of 90 to 264 VAC at 47 to 63 Hz, single phase. The maximum input current is 1.2 A at 115 VAC and 0.6 A at 230 VAC. Inrush current is limited to 40 A maximum during cold start at 264 VAC input. Input protection includes 3.15 A, 250 VAC fuses provided in both line and neutral. Leakage current from input to earth is less than 500 μA under normal conditions and less than 1 mA under single fault conditions. Output to earth leakage is less than 100 μA normal and less than 500 μA single fault. This converter is suitable for a variety of applications requiring a stable 24V DC rail from an AC mains supply.
90 to 264 VAC at 47 to 63 Hz, single phase.
1.2 A maximum.
40 A maximum during cold start at 264 VAC input.
Less than 500 μA under normal conditions.
3.15 A, 250 VAC fuses provided in both line and neutral.
24 VDC output at 32W.
