| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Turn On Time | |
| Type | |
| Voltage | |
| Width |

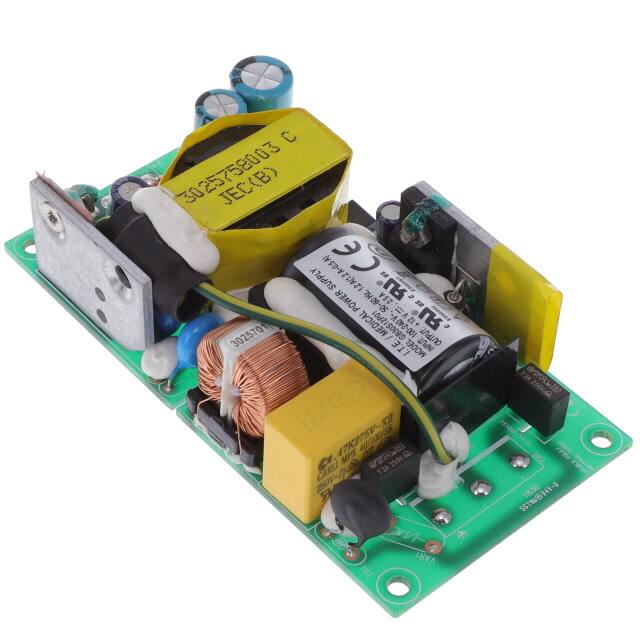

The SL Power Electronics GB30S12P01 is a 30-watt AC to DC converter from the GB30 series, designed for both medical and industrial applications. It features a universal input voltage range of 90 to 264 VAC and achieves a typical efficiency of 88%, meeting DOE Level VI standards. This open-frame converter is suitable for chassis mounting and offers a compact package size of 91.9mm x 48.0mm x 20.9mm.
Key electrical specifications include a maximum power output of 30W, a hold-up time of 20ms at 100 VAC, and a total load regulation of ±2%. The unit provides robust protection features such as over-temperature, short circuit, overload, and overvoltage protection, all operating in hiccup mode. Isolation voltages are rated at 1500 VAC for Input/Ground and Output/Ground, and 4000 VAC for Input/Output.
Designed for demanding environments, the GB30S12P01 operates within a temperature range of -25°C to +70°C with derating. It meets Class B radiated and conducted EMI standards and adheres to Heavy Industrial and IEC60601-1-2 4th Edition EMC levels. Safety approvals include CE, cURus, and DEMKO, with compliance to standards like CSA/IEC/EN/UL62368-1 and CSA/IEC/EN/UL60601-1 3.2 Edition.
With a calculated MTBF of over 1,000,000 hours and an E-cap life exceeding 8 years, this converter is built for reliability. It comes with a 3-year warranty, making it a dependable choice for critical systems.
The input voltage range is 90 to 264 VAC.
The maximum continuous power output is 30W.
The typical efficiency is 88%.
It is suitable for ITE (Commercial) and Medical applications.
The operating temperature range is -25°C to +70°C, with derating.
It is approved to CSA/IEC/EN/UL62368-1 and CSA/IEC/EN/UL60601-1 3.2 Edition.
The MTBF is greater than 1,000,000 hours.
