Mfr Part #:

GB30S09P01

Mfr Name: SL Power Electronics Manufacture of Condor/Ault Brands

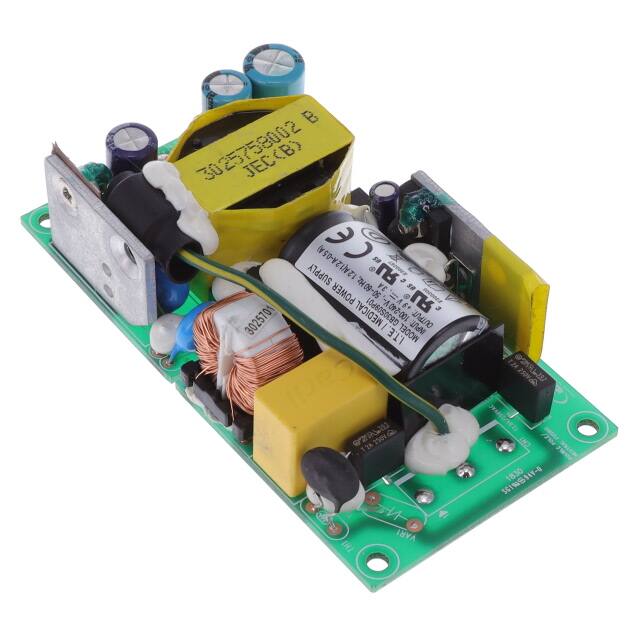

The SL Power Electronics GB30S09P01 is a 30W AC/DC converter designed for medical and industrial applications. It features a universal input voltage range and an open frame design.

Stock on Request

GB30S09P01 Description

Short technical summary and product information.

The SL Power Electronics GB30S09P01 is a 30-watt AC to DC converter from the GB30 series, engineered for demanding medical and industrial applications. It offers a universal input voltage range of 90 to 264 VAC, ensuring compatibility across various power grids.

This converter boasts high efficiency, meeting DOE Level VI standards, and provides 30 watts of convection-cooled power. Key electrical specifications include a typical efficiency of 88%, a power factor of 0.9 minimum at 230 VAC, and robust isolation voltages of 1500 VAC (Input/Ground and Output/Ground) and 4000 VAC (Input/Output).

Designed for easy integration, the GB30S09P01 features an open frame and chassis mount type. Its compact dimensions are 91.9mm x 48.0mm x 20.9mm. The unit includes comprehensive protection features such as over-temperature, short circuit, overload, and overvoltage protection.

Safety approvals include CE, cURus, and DEMKO, with compliance to standards like IEC62368-1 and IEC60601-1. It meets Class B radiated and conducted EMI standards and is suitable for ITE (Commercial) and Medical applications.

GB30S09P01 Quick Information

Product Type: AC DC Converter

Series: GB30 SERIES

Canonical Name: SL Power Electronics Manufacture of Condor/Ault Brands GB30 Series AC/DC Converter, 30W, Single Output

Subcategory: AC DC Converter

GB30S09P01 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

GB30S09P01 Features

30W total power output.
Universal input voltage range (90-264 VAC).
Open frame, chassis mount design.
High isolation voltage (4kV input/output).
Meets medical and industrial standards.

GB30S09P01 Applications

Suitable for medical equipment.
Ideal for industrial control systems.
Used in commercial IT devices.
Designed for high reliability applications.

GB30S09P01 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the GB30S09P01?

The input voltage range is 90 to 264 VAC.

What is the package type of the GB30S09P01?

The package type is open frame with chassis mount.

What is the operating temperature range?

The operating temperature range is -25°C to 70°C with derating.

What is the efficiency of the GB30S09P01?

Typical efficiency is 88%.

What isolation voltages does the GB30S09P01 provide?

Input to output isolation is 4000 VAC (2 MOPP); input to ground and output to ground are 1500 VAC (1 MOPP).

What protection features are included?

Short circuit protection (hiccup mode), overload protection (130-160% of rated output), overvoltage protection (120-150% of nominal output), and overtemperature protection (shutdown with auto-recovery).

What is the MTBF of the GB30S09P01?

MTBF exceeds 1,000,000 hours at full load, 110/220 VAC input, 25°C ambient per Telcordia 332 stress method.

Category	AC DC Converters
Manufacturer Name	SL Power Electronics Manufacture of Condor/Ault Brands
Applications	ITE (Commercial), Medical
Approval Agency	CE, cURus, DEMKO
Current	3 A
Efficiency	88%
Features	Universal Input
Height	20.9mm (0.82")
Input Voltage	90 to 264 VAC
Length	91.9mm (3.62")
Medical Grade	Yes
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature	-25°C to 70°C (With Derating)
Overload Protection	130% to 160% of rated output current
Power (Watts)	30 W
Standard Number	60601-1; 62368-1
Turn On Time	<700 ms
Type	Open Frame
Voltage	4 kV
Width	48.0mm (1.89")
