| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Turn On Time | |
| Type | |
| Voltage | |
| Width |

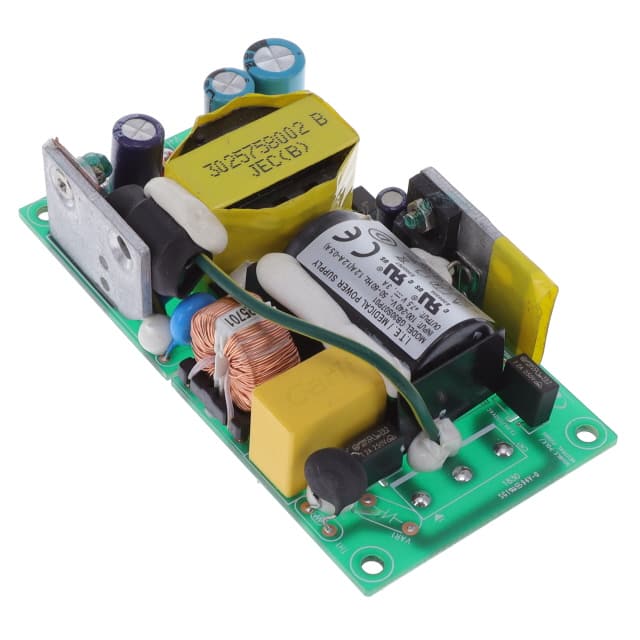

The SL Power Electronics GB30S07P01 is a 23W AC/DC converter from the GB30 series, designed for industrial and medical applications. This open frame power supply accepts a universal input voltage range of 90 to 264 VAC, making it suitable for global use. It provides a single output with a maximum power of 23W and features high efficiency at 88% typical.
The converter is built with robust protection features including over-temperature, short circuit, overload, and overvoltage protection, all operating in hiccup mode. It meets stringent safety standards, including CSA/EN/IEC/UL62368-1 and CSA/EN/IEC/UL60601-1 3.2 Edition, and complies with heavy industrial EMC levels.
With a compact chassis mount design, the GB30S07P01 measures 91.9mm x 48.0mm x 20.9mm. It operates within an ambient temperature range of -25°C to +70°C with derating. The unit boasts a high MTBF of over 1,000,000 hours and an E-cap life exceeding 8 years, ensuring reliability and longevity in demanding environments.
The input voltage range is 90 to 264 VAC.
The maximum power output is 30 W continuous.
The operating temperature range is -25°C to +70°C.
It is approved to CSA/EN/IEC/UL62368-1 and CSA/EN/IEC/UL60601-1 3.2 Edition.
