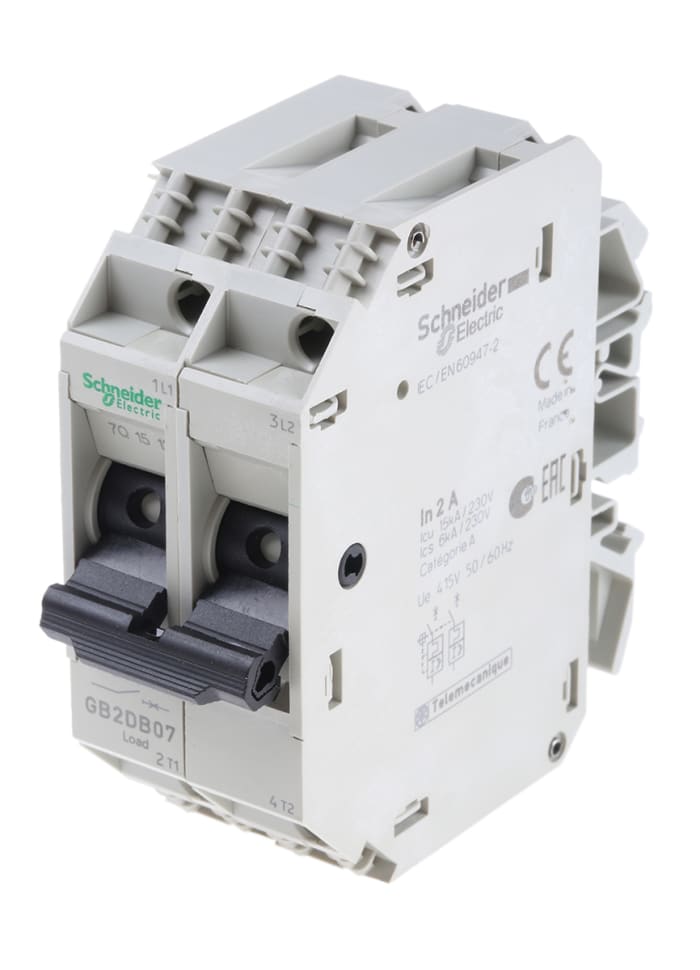

The Schneider Electric GB2DB07 is a TeSys GB2 series thermal magnetic circuit protector. This 2-pole device is designed for control circuit applications, providing reliable protection with a 2A line rated current.
Featuring thermal-magnetic trip unit technology, it offers a magnetic tripping current of 26A. The circuit breaker has a breaking capacity of 15 kA at 110-415V AC and 1.5 kA at 24-48V DC. It is rated for operational voltages up to 415V AC and 48V DC.
Designed for easy installation, the GB2DB07 supports DIN rail mounting and plate mounting. It has a toggle control type and can accommodate solid conductors from 0.75 to 6 mm² and flexible conductors from 0.75 to 4 mm². The device is built for durability with 8000 cycles of mechanical and electrical endurance.
Environmental specifications include an IP20 degree of protection and an operating temperature range of -20°C to 60°C. Standards compliance includes EN/IEC 60947-1 and EN/IEC 60947-2.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The GB2DB07 circuit breaker has a current rating of 2A.
The GB2DB07 circuit breaker is rated for 415V AC and 48V DC.
The breaking capacity is 15 kA for AC voltages up to 415V and 1.5 kA for DC voltages up to 48V.
The GB2DB07 circuit breaker supports DIN rail mounting and plate mounting.
The operating temperature range for the GB2DB07 circuit breaker is -20°C to 60°C.
The RoHS status is RoHS3 Compliant and the REACH status is REACH Unaffected.
