| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

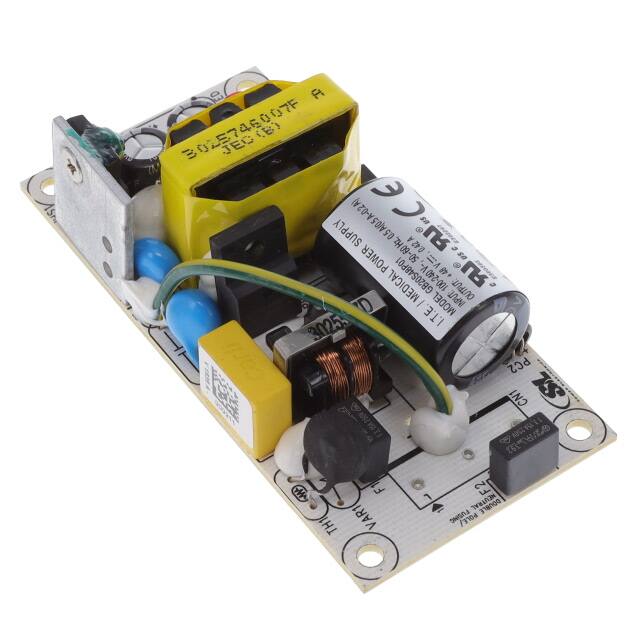

This SL Power Electronics GB20S48P01 is an open frame AC DC converter designed for ITE (Commercial) and Medical applications. It provides a single 48V output with a power rating of 19W and an output current of 400 mA.
The converter operates with a universal input voltage range of 90 to 264 VAC and boasts an efficiency of 88%. Key electrical specifications include a 4 kV voltage rating and compliance with standards such as 60601-1 and 62368-1.
Mechanically, the unit is designed for chassis mounting and has dimensions of 82.0mm x 39.9mm x 20.5mm. The operating temperature range is -25°C to 70°C with derating. It is RoHS3 compliant and has an MSL of 1.
This AC DC converter is suitable for various industrial and medical equipment requiring a reliable power supply.
The input voltage range is 90 to 264 VAC.
The output voltage is 48V.
The operating temperature range is -25°C to 70°C with derating.
The converter is an open frame type with chassis mount design.
The efficiency is 88%.
It is approved for ITE (Commercial) and Medical applications.
It has CE, cURus, and DEMKO approvals.
