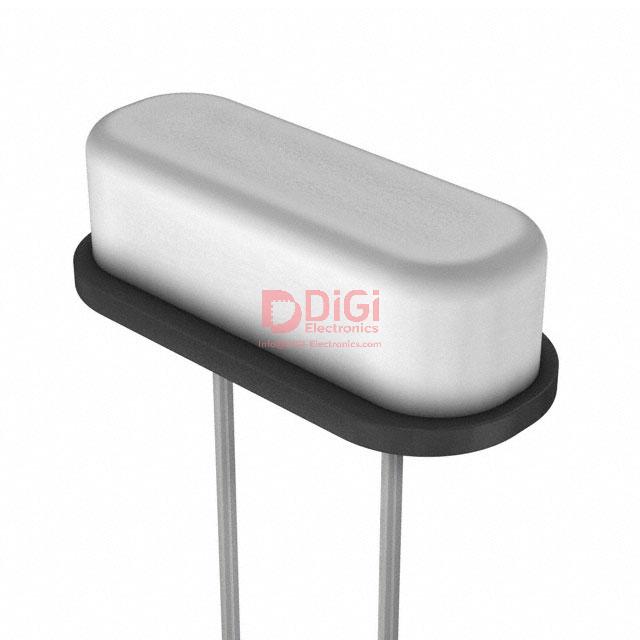

GB1100021 The Saronix GB1100021 is a crystal oscillator with a frequency of 11.0592 MHz. It is designed for through-hole mounting and comes in an HC-49/US package.
Mfr Part #:

GB1100021

Available from 1 distributors
Mfr Name: Saronix
Saronix
The Saronix GB1100021 is a crystal oscillator with a frequency of 11.0592 MHz. It is designed for through-hole mounting and comes in an HC-49/US package.
✓ Total Stock: 630 pcs
$ Price Range: $1.20

GB1100021 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
630 pcs
On Request
630 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GB1100021 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency
Frequency Stability
Frequency Tolerance
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
SVHC Present
View Similar Products (0)

GB1100021 Description

Short technical summary and product information.

The Saronix GB1100021 is a crystal component designed for electronic circuits requiring precise frequency generation. It operates at a nominal frequency of 11.0592 MHz with a frequency stability and tolerance of ±30ppm.



This crystal features a load capacitance of 30pF and an equivalent series resistance (ESR) of 30 Ohms. It operates in fundamental mode and is rated for an operating temperature range of -20°C to 70°C.



The GB1100021 is packaged in an HC-49/US case and utilizes a through-hole mounting type. Its dimensions are 11.20mm in length and 5.00mm in width, with a maximum seated height of 3.50mm.

GB1100021 Quick Information

Product Type: Crystal
Series: SaRonix-eCera™
Canonical Name: SARONIX GB1100021 Crystal

GB1100021 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

GB1100021 Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

GB1100021 Features

  • 11.0592 MHz nominal frequency output.
  • ±30ppm frequency stability and tolerance.
  • 30pF load capacitance specified.
  • Through-hole mounting in HC-49/US package.
  • Operates from -20°C to 70°C.

GB1100021 Applications

  • Ideal for clock generation circuits.
  • Suitable for timing reference applications.
  • Used in embedded system designs.
  • Applicable in communication modules.

GB1100021 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the frequency of the GB1100021 crystal?

11.0592 MHz.

What is the load capacitance?

30pF.

What is the package type?

HC-49/US.

What is the operating temperature range?

-20°C to 70°C.

What is the ESR?

30 Ohms.

What is the frequency stability?

±30ppm.

What is the mounting type?

Through Hole.
