| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

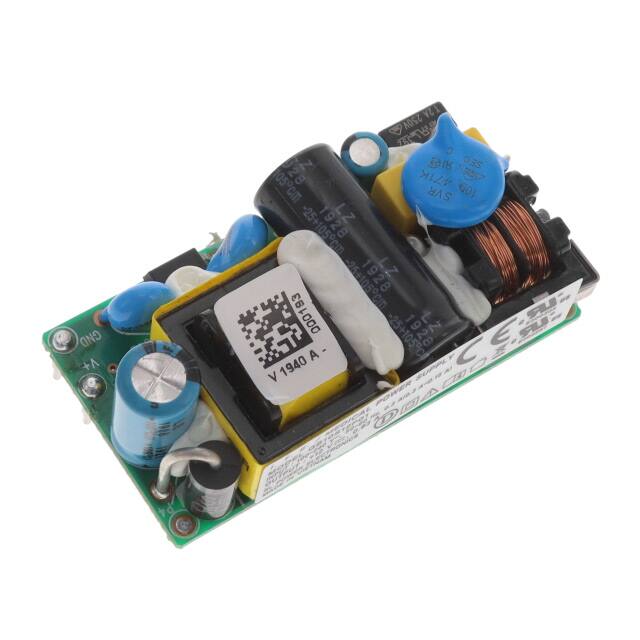

The SL Power Electronics GB10S12P01 is an open frame AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a 12W output power with a single 12V output.
Key electrical specifications include a universal input and an efficiency of 88%. The converter operates within a temperature range of -25°C to 70°C with derating. It meets safety standards such as 60601-1 and 62368-1, with approval agencies including CE, cURus, and DEMKO.
Mechanically, this converter has a chassis mount type and dimensions of 52.0mm x 27.3mm x 18.0mm. It offers a voltage isolation of 4 kV. The RoHS status is compliant with RoHS3, and the Moisture Sensitivity Level (MSL) is 1.
It provides a single output of 12V at 1A.
The power rating is 12W.
The efficiency is 88%.
The operating temperature range is -25°C to 70°C with derating.
It has CE, cURus, and DEMKO approvals.
