| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

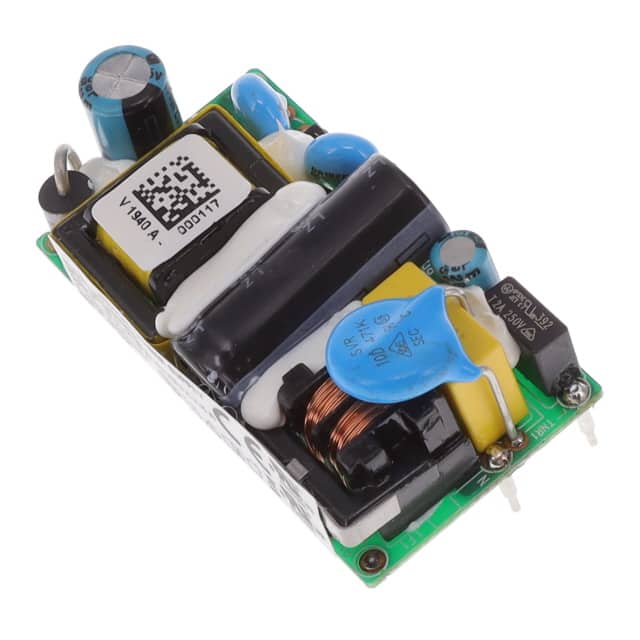

The SL Power Electronics GB10S09P01 is an open frame AC DC converter designed for ITE (Commercial) and Medical applications. It provides a single output with 9W of power and 1A of current.
This converter operates with a universal input voltage range of 90 to 264 VAC and features an efficiency of 88%. The operating temperature range is -25°C to 70°C with derating. Its compact dimensions are 52.0mm in length, 27.3mm in width, and 18.0mm in height.
Compliance includes CE, cURus, and DEMKO approvals, along with RoHS3 compliance. It is designed for chassis mounting.
Key specifications include a 4kV voltage rating and adherence to standards such as 60601-1 and 62368-1.
The operating temperature range is -25°C to 70°C with derating.
The package type is Box.
The output voltage is 9V.
The output current is 1A (derived from 9W at 9V).
It is approved by CE, cURus, and DEMKO.
The efficiency is 88%.
The isolation voltage is 4 kV.
