| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

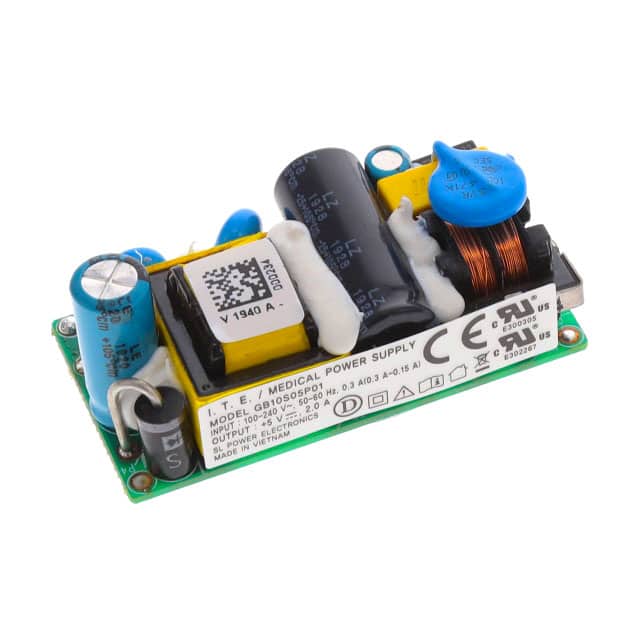

The GB10S05P01 is an AC/DC converter from SL Power Electronics designed for commercial ITE and medical applications. It delivers a single 5V output at 10W with 88% typical efficiency. The converter features universal input capability and provides 4kV input-to-output isolation for safety. It is approved to CE, cURus, and DEMKO standards, complying with 60601-1 and 62368-1 safety standards. The open frame design allows chassis mounting, with compact dimensions of 52.0mm x 27.3mm x 18.0mm. Operating temperature range is -25°C to 70°C with derating. This converter is suitable for space-constrained applications requiring reliable isolated power.
5V
-25°C to 70°C with derating
88%
4 kV
CE, cURus, DEMKO
Chassis Mount
Open Frame
