| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7,030 pcs
|
7030 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
63 pcs
|
63 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Gain | |
| Mounting Type | |
| Noise Figure | |
| P1dB | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Test Frequency | |
| Voltage |

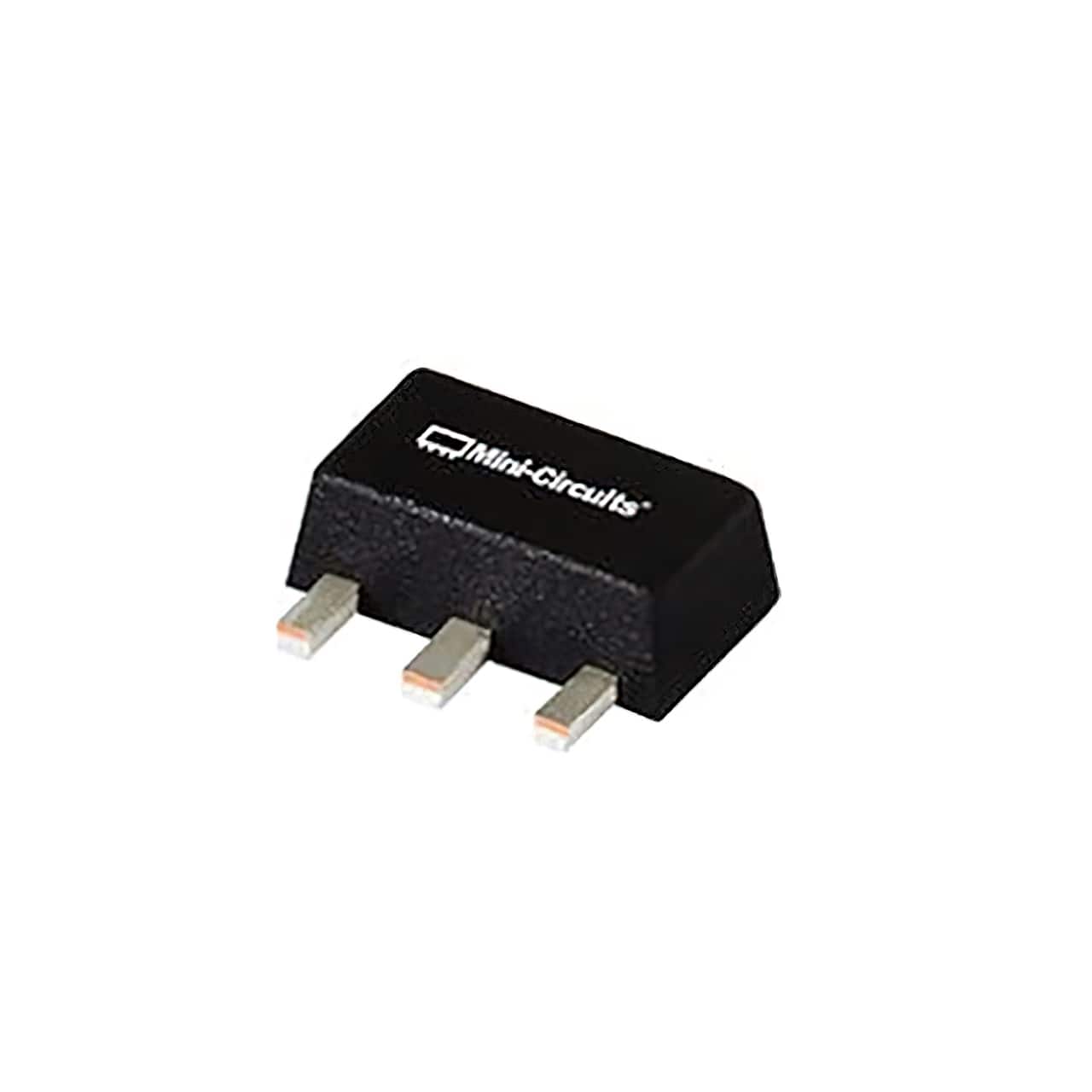

The Mini-Circuits GALI-74+ is a wideband monolithic amplifier featuring high dynamic range and repeatable performance. Fabricated using InGaP HBT technology, it is enclosed in a SOT-89 package and offers a frequency range from DC to 1 GHz.
Key electrical specifications include a typical gain of 25.1 dB at 0.1 GHz, a typical output power (P1dB) of +19.2 dBm at 0.1 GHz, and a high IP3 of +38 dBm at 0.1 GHz. The amplifier also boasts a low noise figure of 2.7 dB typical and is internally matched to 50 Ohms. It operates with a supply voltage range of 4.3V to 5.3V and draws a current of 80mA.
Designed for ruggedness against ESD and supply switch-on transients, the GALI-74+ is suitable for applications in cellular, broadband, and communication receivers and transmitters. It is surface mountable and comes in a SOT-89 package (also referred to as TO-243AA).
The expected MTTF is 500 years at 85°C case temperature. The device is RoHS 3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The GALI-74+ operates from DC to 1 GHz.
The typical gain is 25.1 dB at 0.1 GHz.
The typical output power (P1dB) is +19.2 dBm at 0.1 GHz.
The typical noise figure is 2.7 dB.
The operating voltage range is 4.3V to 5.3V.
The GALI-74+ is supplied in a SOT-89 package, also known as TO-243AA.
The GALI-74+ is RoHS 3 Compliant.
