| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,595 pcs
|
3595 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time tpd(1) Max | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of I | |
| Number of Macrocells | |
| Operating Temperature | |
| Programmable Type | |
| Supplier Device Package | |
| Voltage Supply |

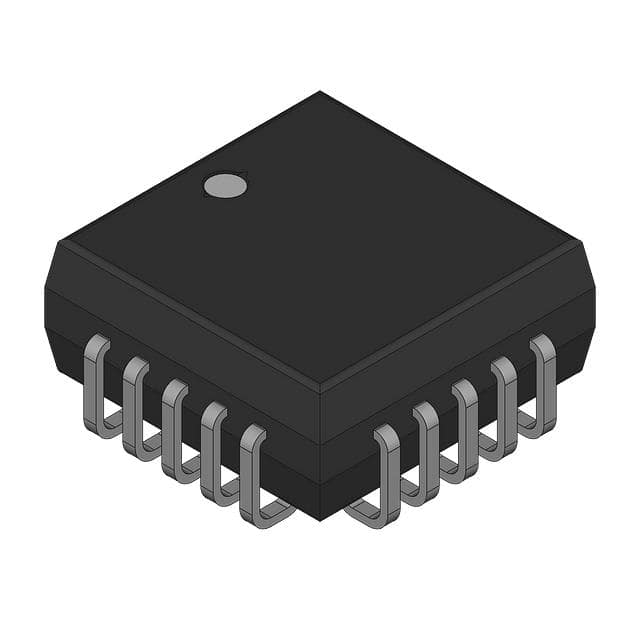

The Lattice Semiconductor GAL16LV8D-5LJ is a Complex Programmable Logic Device (CPLD) with 8 macrocells and 8 I/O pins. It offers a maximum propagation delay of 5 ns and operates within a voltage supply range of 3V to 3.6V. This EE PLD is designed for surface mount applications and comes in a 20-PLCC (9x9) package.
The device operates at temperatures between 0°C and 75°C (TA). Its RoHS3 compliant status and Moisture Sensitivity Level (MSL) of 1 indicate suitability for various manufacturing environments. The GAL16LV8D-5LJ is suitable for embedded applications requiring programmable logic.
Key electrical characteristics include its 8 macrocells and 8 I/O lines, providing flexibility in logic implementation. The 5ns delay time ensures efficient signal processing for time-sensitive operations. The 3V to 3.6V operating voltage makes it compatible with low-voltage systems.
Packaged in a 20-LCC (J-Lead) format, the surface mountable GAL16LV8D-5LJ is designed for automated assembly processes. Its compact size and robust specifications make it a reliable choice for CPLD applications.
The operating voltage is 3V to 3.6V.
It is supplied in a 20-PLCC (9x9) or 20-LCC (J-Lead) package.
The operating temperature range is 0°C to 75°C (TA).
Yes, it is RoHS3 compliant.
