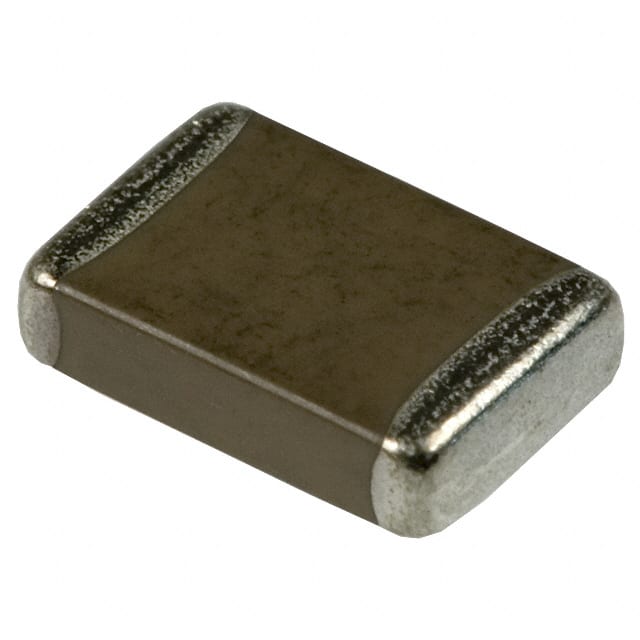

GA343QR7GD222KW01L Safety certified MLCC capacitor from Murata, 2200pF capacitance, 250VAC rated voltage, X7R dielectric, 1812 package.
Mfr Part #:

GA343QR7GD222KW01L

Available from 3 distributors
Mfr Name: Murata
Murata
Safety certified MLCC capacitor from Murata, 2200pF capacitance, 250VAC rated voltage, X7R dielectric, 1812 package.
✓ Total Stock: 2,883 pcs
$ Price Range: $0.41 - $1.33

GA343QR7GD222KW01L Available from 3 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GA343QR7GD222KW01L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Capacitance Change vs Temperature (Max)
Dissipation Factor (Max)
Impulse Voltage
Insulation Resistance (Min)
Length
Mounting Type
Operating Temperature
Ratings
Standard Package Qty
Tape & Reel
Tape/Reel Status
Temperature Coefficient
Thickness (Max)
Tolerance
Voltage
Voltage Proof
Width
View Similar Products (0)

GA343QR7GD222KW01L Description

Short technical summary and product information.

This is a safety standard certified chip multilayer ceramic capacitor from Murata, part of the GD series. It has a capacitance of 2200 pF with ±10% tolerance and is rated for 250VAC operation.



The capacitor uses X7R dielectric, offering a capacitance change of ±15% over the operating temperature range of -55°C to +125°C. It meets Y3 safety rating and is designed for general purpose use in UL60950 conformed devices.



The component is housed in an 1812 (4532 Metric) surface mount package with dimensions 4.5mm x 3.2mm x 1.5mm. It is supplied on tape and reel, with 4000 pieces per 330mm reel or 1000 pieces per 180mm reel. Suitable for reflow soldering.

GA343QR7GD222KW01L Quick Information

Product Type: Ceramic Capacitor
Series: GD
Canonical Name: Murata GA343QR7GD222KW01L 2200pF 250VAC X7R MLCC Capacitor
Subcategory: Safety Certified MLCC

GA343QR7GD222KW01L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

GA343QR7GD222KW01L Estimated Pricing

Qty Low High
1+ $1.33 $1.33
10+ $0.80 $0.80
100+ $0.66 $0.66
500+ $0.54 $0.54
1,000+ $0.51 $0.51
2,000+ $0.46 $0.46
5,000+ $0.44 $0.44
25,000+ $0.41 $0.41

Estimated market price range - modelled values for guidance only, not live distributor offers.

GA343QR7GD222KW01L Features

  • 2200pF capacitance with ±10% tolerance.
  • Rated for 250VAC operation.
  • X7R dielectric with ±15% capacitance change.
  • Safety certified Y3 rating.
  • Surface mount 1812 package.

GA343QR7GD222KW01L Applications

  • Used in AC line filtering circuits.
  • Suitable for safety isolation applications.
  • Ideal for general purpose power supplies.
  • Compatible with reflow soldering processes.

GA343QR7GD222KW01L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance value?

2200 pF with ±10% tolerance.

What is the rated voltage?

250VAC.

What is the temperature coefficient?

X7R, with capacitance change of ±15% over -55°C to +125°C.

What is the capacitance tolerance?

±10%.

What is the package size?

1812 (4532 Metric) surface mount package.

What safety rating does this capacitor have?

Y3 safety rating.

What is the operating temperature range?

-55°C to +125°C.
