| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Release Time | |
| Switching Voltage | |
| Termination Style |

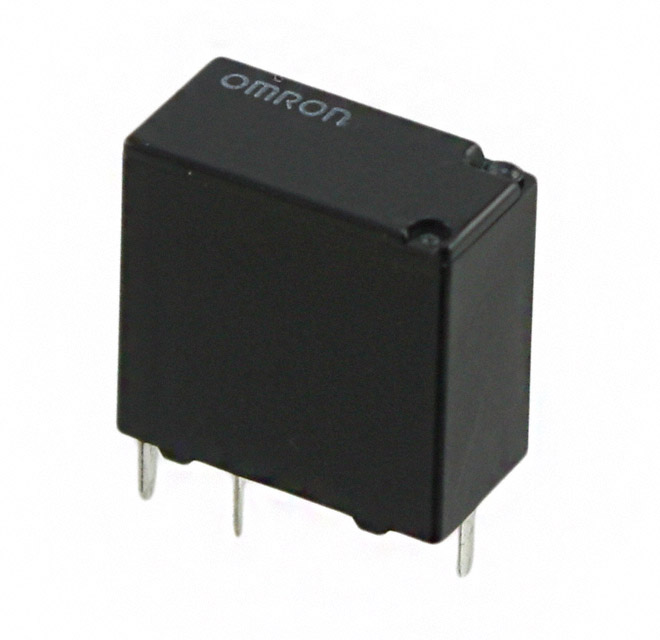

The Omron G8N-1 DC12 SK is an automotive relay with a Single Pole Double Throw (SPDT) contact form. It is rated for a current of 30A and operates with a 12VDC coil voltage. The relay features a non-latching coil type and a PC pin termination style.
Designed for through-hole mounting, this relay has an operating temperature range of -40°C to 85°C. Key electrical specifications include a must-operate voltage of 7.2 VDC and a must-release voltage of 1 VDC, with an operate time and release time of 10 ms each. The maximum switching voltage is 16VDC.
This component is suitable for various automotive applications requiring reliable switching capabilities. Its robust design and specifications make it a dependable choice for demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 12VDC.
The contact rating current is 30A.
The contact form is SPDT (1 Form C).
The operating temperature range is -40°C to 85°C.
It is a through-hole mounting type.
The operate time is 10 ms and the release time is 10 ms.
