| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,660 pcs
|
8660 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Features | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Release Time | |
| Switching Voltage | |
| Termination Style |

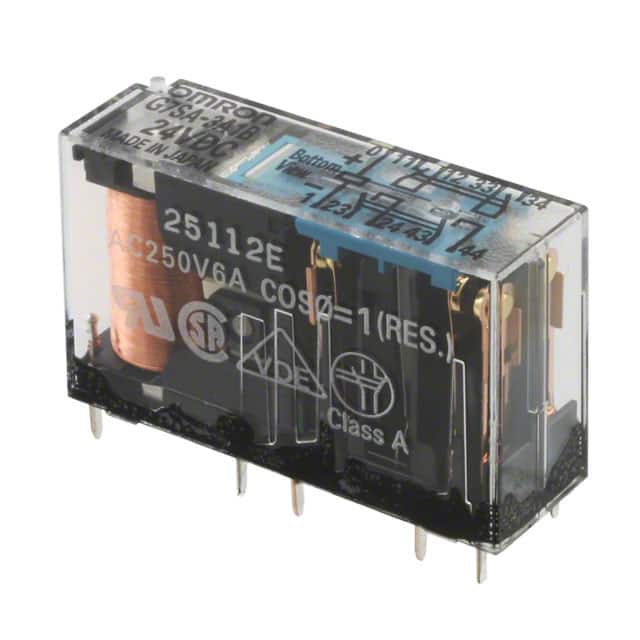

The Omron G7SA-3A1B-DC24 is a safety relay designed for applications requiring reliable switching and safety interlocks. It features a 4PST contact configuration, comprising 3 Form A (NO) and 1 Form B (NC) contacts, capable of handling up to 6A.
The relay operates on a 24VDC coil voltage, with a must-operate voltage of 18VDC and a must-release voltage of 2.4VDC. It has an operate time of 20ms and a release time of 10ms, ensuring quick response in safety circuits. The switching voltage is rated up to 250VAC or 125VDC maximum.
Designed for flexibility, the G7SA-3A1B-DC24 supports both socketable and through-hole mounting via PC pins or plug-in termination. Its operating temperature range is from -40°C to 85°C. The relay is sealed for flux protection, enhancing its durability in various environments. It is compliant with RoHS3 standards and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 24 VDC.
The contact rating is 6 A.
It has a 4PST contact form, specifically 3 Form A (NO) and 1 Form B (NC).
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
