| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,964 pcs
|
2964 pcs | On Request | 1 | On Request | On Request | 2021+ | On Request | On Request | |
|
873 pcs
|
873 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Resistance | |
| Contact Resistance | |
| Height | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Operate Time | |
| Operating Temperature | |
| Power Consumption | |
| Release Time | |
| Termination Method | |
| Voltage | |
| Width |

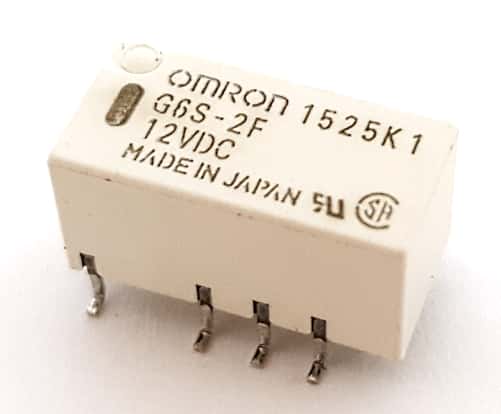

This Omron G6S-2F-12VDC is a surface mount electromechanical relay with DPDT non-latching configuration. It is designed for low signal applications and operates with a 12VDC coil voltage. The relay has a maximum carry current of 2A and a switching capacity of 62.5 VA or 60W. Its contact resistance is a maximum of 75mOhm, with operate and release times of 4ms maximum.
The component has a compact rectangular shape with dimensions of 14.8mm in length, 7.3mm in width, and 9.2mm in height. It utilizes gullwing terminals for solder termination and is rated for an operating temperature range of -40 to 85°C. The mechanical service life is rated for a minimum of 100,000,000 operations.
This relay is suitable for various electronic circuits requiring reliable switching of low signal loads. Its surface mount design facilitates automated assembly processes on PCBs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.77 | $0.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil rated voltage is 12 VDC.
The maximum operating voltage is 250 VAC.
The rated load current at 30 VDC is 2 A.
It uses surface mount with gullwing terminals.
It has a minimum mechanical service life of 100 million operations.
