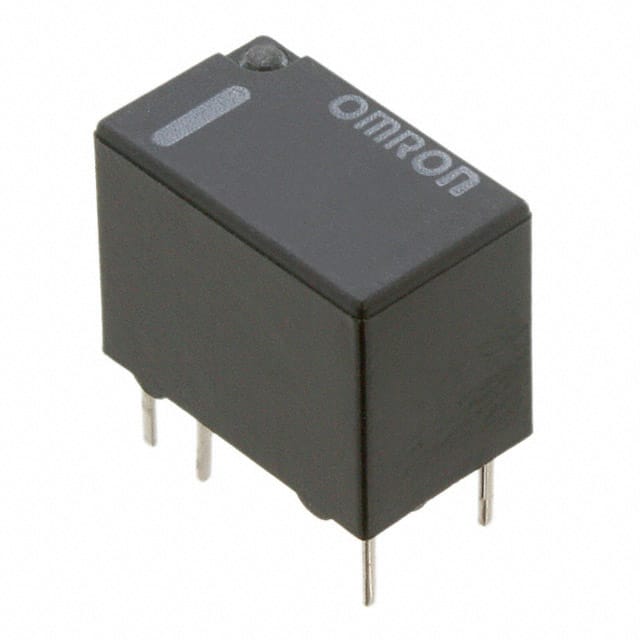

G5V-1-DC12 The Omron G5V-1-DC12 is a general purpose SPDT signal relay designed for through-hole mounting. It features a 1A contact rating and operates on a 12VDC coil voltage.
Mfr Part #:

G5V-1-DC12

Available from 4 distributors
Mfr Name: Omron
Omron
The Omron G5V-1-DC12 is a general purpose SPDT signal relay designed for through-hole mounting. It features a 1A contact rating and operates on a 12VDC coil voltage.
✓ Total Stock: 4,357 pcs
$ Price Range: $2.00

G5V-1-DC12 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

G5V-1-DC12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Current
Coil Type
Coil Voltage
Contact Form
Contact Material
Contact Rating (Current)
Lead Style
Mounting Type
Must Operate Voltage
Must Release Voltage
Operate Time
Operating Temperature
Relay Type
Release Time
Seal Rating
Switching Voltage
Termination Style
View Similar Products (0)

G5V-1-DC12 Description

Short technical summary and product information.

The Omron G5V-1-DC12 is a general purpose signal relay with a Single Pole Double Throw (SPDT) contact form. It is designed for through-hole mounting and utilizes PC pin termination.



This relay has a contact rating of 1A and a switching voltage of up to 125VAC or 60VDC. The coil operates at 12VDC with a coil current of 12.5 mA. It requires a minimum of 9.6 VDC to operate and will release at or below 1.2 VDC. Both the operate and release times are rated at 5 ms.



The operating temperature range for the G5V-1-DC12 is -40°C to 70°C. It features a fully sealed construction for protection. The contact material is a combination of Silver (Ag) and Gold (Au).



This component is suitable for various electronic applications requiring reliable switching. Its specifications make it a versatile choice for signal routing and control circuits.

G5V-1-DC12 Quick Information

Product Type: Signal Relay
Canonical Name: Omron G5V-1-DC12 SPDT General Purpose Relay
Subcategory: Signal Relay

G5V-1-DC12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

G5V-1-DC12 Estimated Pricing

Qty Low High
1+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

G5V-1-DC12 Features

  • SPDT contact form for versatile switching.
  • Rated for 1A current and 125VAC/60VDC.
  • Operates on a 12VDC coil voltage.
  • Through-hole mounting with PC pin termination.
  • Sealed construction for environmental protection.

G5V-1-DC12 Applications

  • Ideal for general purpose signal switching.
  • Suitable for PCB mounted control circuits.
  • Used in low current switching applications.
  • Reliable operation in -40°C to 70°C.

G5V-1-DC12 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the coil voltage of the G5V-1-DC12 relay?

The coil voltage is 12 VDC.

What is the contact form of this relay?

It has an SPDT (Single Pole Double Throw) contact form.

What is the contact rating of the relay?

The contact rating is 1 ampere.

What is the operating temperature range?

-40°C to 70°C.

Is the relay RoHS compliant?

Yes, it is RoHS3 compliant.
