| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Ingress Protection | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Termination Style |

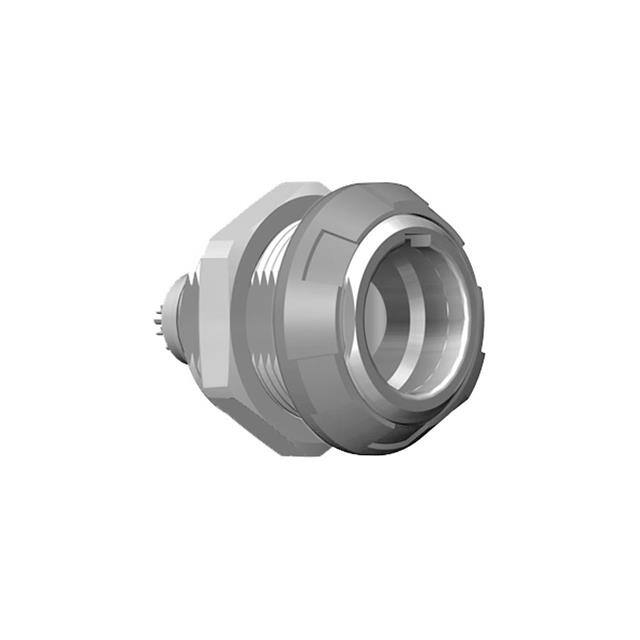

The ODU G51MA7-P06LFD0-0070 is a circular connector receptacle designed for applications requiring reliable signal or power connections. It features 6 female socket positions with gold-plated contacts for corrosion resistance and consistent conductivity. The connector is panel mounted using a bulkhead front or rear side nut, and termination is via solder cups, facilitating straightforward wiring.
Key specifications include a current rating of 4.55A, operating temperature range of -50°C to 120°C, and IP50 ingress protection for dust resistance. The shell is made of polysulfone (PSU) plastic in gray, with a push-pull detent lock fastening mechanism for secure mating. The shell size is 1 with orientation A. This connector is unshielded.
Typical applications include industrial automation, medical devices, test and measurement equipment, and other environments where a compact, robust circular connector is needed. The gold contacts ensure low contact resistance and long-term reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $25.69 | $25.69 |
| 10+ | $21.83 | $21.83 |
| 25+ | $20.16 | $20.16 |
| 50+ | $19.13 | $19.13 |
| 100+ | $18.30 | $18.30 |
| 250+ | $17.28 | $17.28 |
| 500+ | $16.57 | $16.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 6 positions (female sockets).
The current rating is 4.55A.
The connector is panel mount with a bulkhead front or rear side nut.
The ingress protection is IP50 - Dust Protected.
The operating temperature range is -50°C to 120°C.
The contact finish is gold.
The shell material is polysulfone (PSU) plastic.
