| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | 2008 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Storage Temperature | |
| Switching Voltage | |
| Tape & Reel | |
| Termination Style |

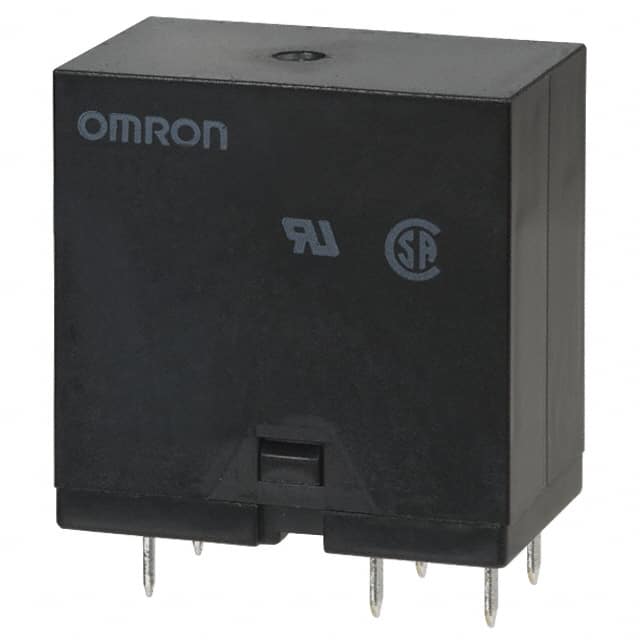

The Omron G4W2212PUSTV5DC24 is a general-purpose PCB Power Relay featuring a DPST-NO (2 Form A) contact configuration. It is rated for a 10A contact current and operates with a 24VDC coil voltage.
This relay is designed for through-hole mounting with PC pin termination. It supports a maximum switching voltage of 250VAC and 125VDC. The operating temperature range is from -25°C to 55°C, with an operate time of 20ms and a release time of 5ms.
The G4W series relays offer high impulse withstand voltage up to 10kV and 4kV dielectric strength, making them suitable for power supply switching applications. The contact material is Silver Alloy, Cadmium Free. It also features RoHS3 compliance and an MSL 1 rating.
Key electrical specifications include a coil current of 33.3 mA, a must-operate voltage of 19.2 VDC, and a must-release voltage of 2.4 VDC.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 24 VDC.
The contact current rating is 10 A.
The operating temperature range is -25°C to 55°C.
The dielectric strength is 4,000 VAC.
The impulse withstand voltage is 10,000 V.
This relay is designed for through-hole mounting.
