| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
197 pcs
|
197 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Bushing Thread | |
| Circuit | |
| Current Rating (Amps) | |
| Features | |
| Illumination | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

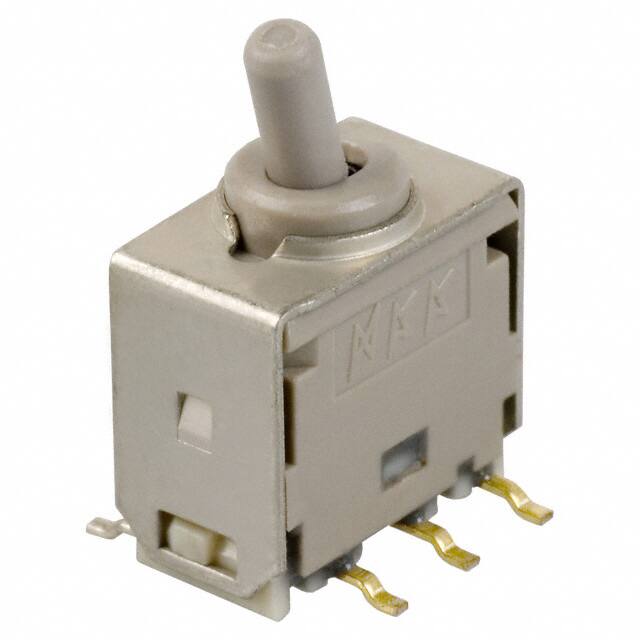

This NKK Switches G3T13AP is an ultra-miniature toggle switch designed for various electronic applications. It features a Single Pole Double Throw (SPDT) circuit with an On-Off-On function, providing versatile control.
The switch has an electrical rating of 0.4VA (AC/DC) at 28V. It is non-illuminated and designed for surface mounting with gull-wing terminals, making it suitable for automated assembly processes. The operating temperature range is -30°C to 85°C.
Key features include its process-sealed construction and an unthreaded bushing. The actuator type is standard round with a length of 3.81mm. This toggle switch is a reliable component for applications requiring precise switching capabilities in a compact form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The G3T13AP toggle switch features an SPDT (Single Pole Double Throw) circuit.
The switch function is On-Off-On.
The G3T13AP has a current rating of 0.4VA (AC/DC) and a voltage rating of 28V.
The operating temperature range is -30°C to 85°C.
The G3T13AP is designed for surface mounting.
It uses a gull-wing termination style.
No, the G3T13AP is non-illuminated.
