| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Insulation | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Seal Rating | |
| Switching Voltage | |
| Termination Style |

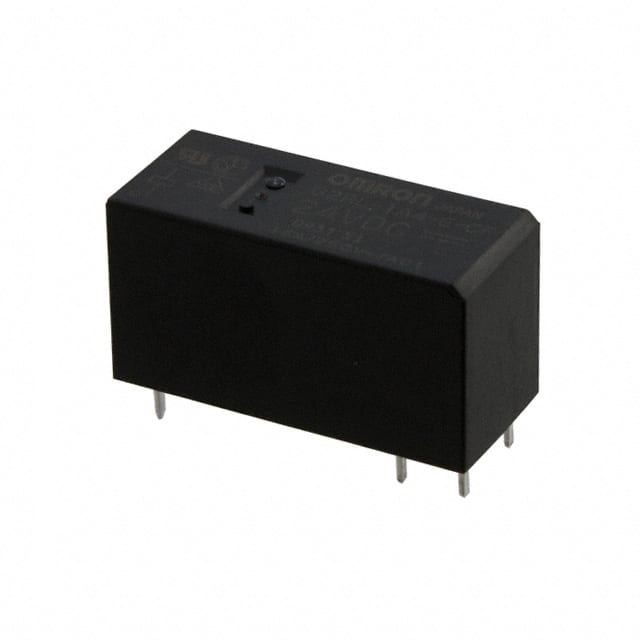

The Omron G2RL-1A-E DC24 is a general purpose power relay designed for reliable switching applications. It features a single pole, single throw, normally open (SPST-NO) contact form, capable of handling up to 16A of current and switching voltages up to 440VAC or 300VDC.
This relay operates with a 24VDC coil, requiring a minimum of 16.8VDC to operate and releasing at or below 2.4VDC. The coil current is 16.7 mA. It offers a quick operate time of 15 ms and a release time of 5 ms. The contact material is Silver Alloy, Cadmium Free, ensuring durability and performance.
Designed for through-hole mounting with a PC pin termination style, the G2RL-1A-E DC24 is suitable for various PCB applications. It is sealed for flux protection and operates within a temperature range of -40°C to 85°C. The relay is RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 24 VDC.
The contact current rating is 16 A.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 Compliant.
The mounting type is Through Hole.
