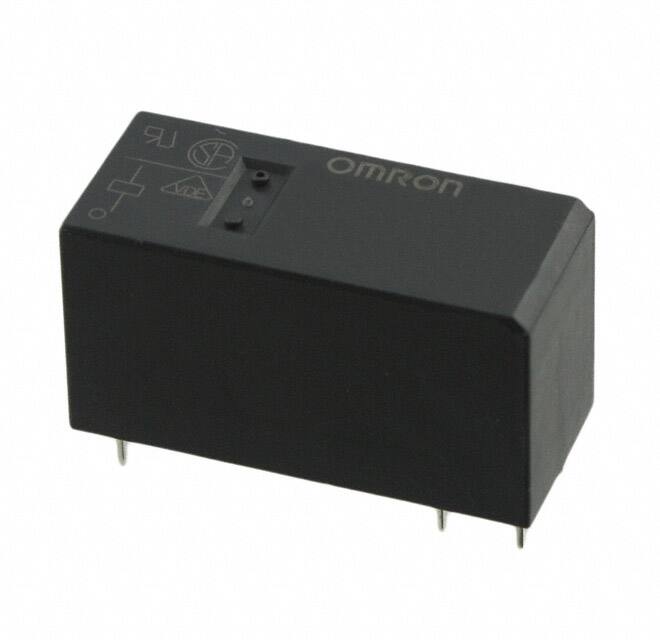

G2RL-1A-E DC12 The Omron G2RL-1A-E DC12 is a general purpose power relay with a 16A contact rating and a 12VDC coil. It features a SPST-NO contact form and through-hole mounting.
Mfr Part #:

G2RL-1A-E DC12

Available from 1 distributors
Mfr Name: Omron
Omron
The Omron G2RL-1A-E DC12 is a general purpose power relay with a 16A contact rating and a 12VDC coil. It features a SPST-NO contact form and through-hole mounting.
✓ Total Stock: 2,000 pcs
$ Price Range: $2.00

G2RL-1A-E DC12 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

G2RL-1A-E DC12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Current
Coil Insulation
Coil Type
Coil Voltage
Contact Form
Contact Material
Contact Rating (Current)
Lead Style
Mounting Type
Must Operate Voltage
Must Release Voltage
Operate Time
Operating Temperature
Relay Type
Release Time
Seal Rating
Switching Voltage
Termination Style
View Similar Products (0)

G2RL-1A-E DC12 Description

Short technical summary and product information.

This Omron G2RL-1A-E DC12 is a general purpose relay designed for power applications. It offers a robust 16A contact rating and operates with a 12VDC coil.



The relay features a SPST-NO (1 Form A) contact configuration, suitable for switching single-pole, normally open circuits. It has an operate time of 15 ms and a release time of 5 ms, with a must-operate voltage of 8.4 VDC and a must-release voltage of 1.2 VDC.



Designed for through-hole mounting with PC pin termination, this relay is sealed for flux protection. It operates within a temperature range of -40°C to 85°C and utilizes Class F coil insulation. The switching voltage is rated up to 440VAC or 300VDC maximum.

G2RL-1A-E DC12 Quick Information

Product Type: Power Relay
Canonical Name: Omron G2RL-1A-E DC12 General Purpose Relay
Subcategory: Power Relay

G2RL-1A-E DC12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

G2RL-1A-E DC12 Estimated Pricing

Qty Low High
1+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

G2RL-1A-E DC12 Features

  • 16A contact rating for power applications.
  • 12VDC coil voltage.
  • SPST-NO (1 Form A) contact form.
  • Through-hole mounting with PC pins.
  • Sealed for flux protection.

G2RL-1A-E DC12 Applications

  • Ideal for general purpose switching.
  • Suitable for power control circuits.
  • Used in automation systems.
  • Applicable in industrial controls.

G2RL-1A-E DC12 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the coil voltage of the G2RL-1A-E DC12 relay?

The coil voltage is 12 VDC.

What is the contact rating of this relay?

The contact rating is 16 A.

What is the maximum switching voltage for this relay?

The maximum switching voltage is 440 VAC or 300 VDC.

What is the operating temperature range?

The relay operates within -40°C to 85°C.

Is this relay RoHS compliant?

Yes, it is RoHS3 compliant.
