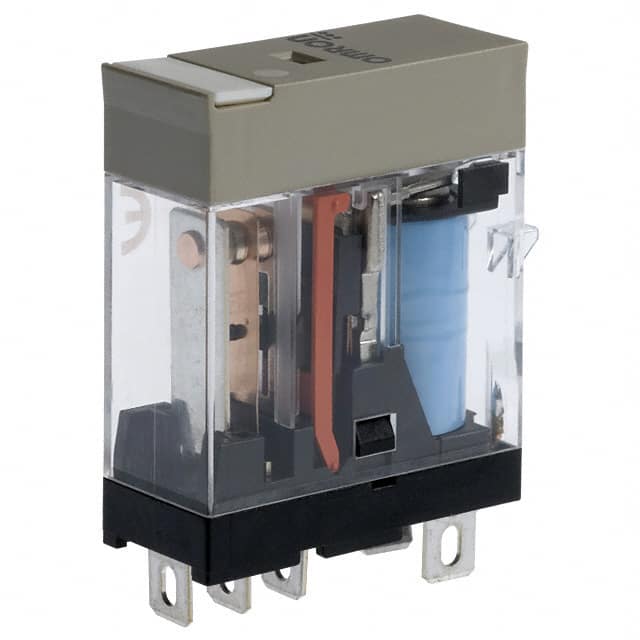

G2R-1-SN-DC24 The Omron G2R-1-SN-DC24 is a general purpose power relay with a 10A contact rating and a 24VDC coil. It features an SPDT contact form and a lighted indicator.
Mfr Part #:

G2R-1-SN-DC24

Available from 1 distributors
Mfr Name: Omron
Omron
The Omron G2R-1-SN-DC24 is a general purpose power relay with a 10A contact rating and a 24VDC coil. It features an SPDT contact form and a lighted indicator.
✓ Total Stock: 8 pcs
$ Price Range: $2.00

G2R-1-SN-DC24 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

G2R-1-SN-DC24 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Current
Coil Type
Coil Voltage
Contact Form
Contact Rating (Current)
Features
Mounting Type
Must Operate Voltage
Must Release Voltage
Operate Time
Operating Temperature
Relay Type
Release Time
Switching Voltage
Termination Style
View Similar Products (0)

G2R-1-SN-DC24 Description

Short technical summary and product information.

The Omron G2R-1-SN-DC24 is a slim and space-saving power plug-in relay from the G2RS series. It features a single pole, double throw (SPDT) contact form with a high switching power capability of 10A.



This general-purpose relay operates with a 24VDC coil and includes a lighted indicator for operational status. The termination style is plug-in with quick connect terminals, making it suitable for socketable mounting. It is designed for reliable operation within a temperature range of -40°C to 70°C.



The G2RS series relays are built with an environment-friendly construction, free from Cadmium (Cd) and Lead (Pb). This model offers a must-operate voltage of 16.8 VDC and a must-release voltage of 3.6 VDC, with an operate time of 15 ms and a release time of 5 ms.

G2R-1-SN-DC24 Quick Information

Product Type: Power Relay
Series: G2RS
Canonical Name: Omron G2R-1-SN-DC24 General Purpose Relay
Subcategory: General Purpose Relay

G2R-1-SN-DC24 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb free

G2R-1-SN-DC24 Estimated Pricing

Qty Low High
1+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

G2R-1-SN-DC24 Features

  • 10A switching power capability.
  • 24VDC coil voltage.
  • SPDT (1 Form C) contact form.
  • Plug-in termination style.
  • Lighted indicator feature.

G2R-1-SN-DC24 Applications

  • Suitable for general purpose switching.
  • Ideal for space-saving applications.
  • Used in control systems.
  • Facilitates easy maintenance with plug-in design.

G2R-1-SN-DC24 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the coil voltage for the G2R-1-SN-DC24 relay?

The coil voltage is 24 VDC.

What is the contact current rating?

The contact current rating is 10 A.

What is the contact form of this relay?

The contact form is SPDT (1 Form C).

What is the operating temperature range?

The operating temperature range is -40°C to 70°C.

Is this relay RoHS compliant?

Yes, it is RoHS3 Compliant.
