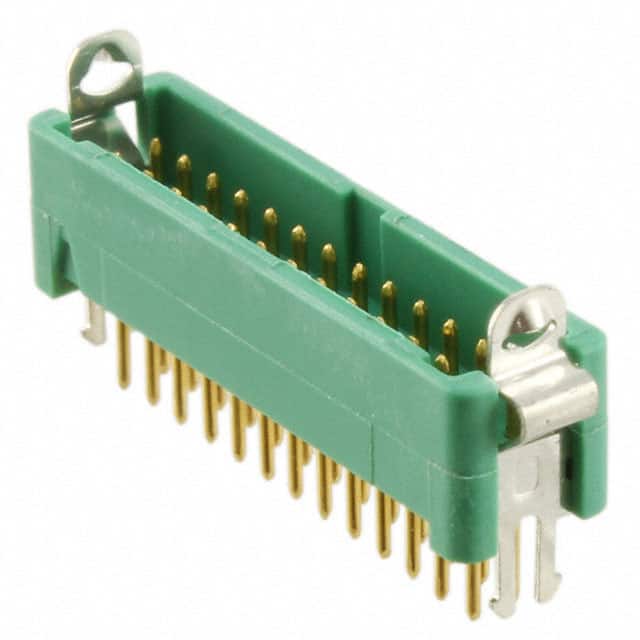

G125-MV22605L2P

The G125-MV22605L2P is a male pin header from Harwin's Gecko Latch series, designed for high-reliability interconnections in board-to-board and cable-to-board applications. It features 26 positions arranged in 2 rows at a 1.25mm pitch, with a through-hole mounting style and solder termination. The contacts are made of phosphor bronze with a gold plating of 0.203µm (8µin), ensuring reliable electrical performance and corrosion resistance. The connector is fully shrouded (4-wall) with a latch lock mechanism for secure mating, and includes board lock and pick-and-place features for automated assembly. The insulation is molded from green polyamide (PA4T) glass-filled halogen-free material with a UL94 V-0 flammability rating, capable of operating from -65°C to 150°C. The contact length is 4.5mm, and the insulation height is 4.9mm. Each contact is rated for 2A current.
