Mfr Part #:

G125-MV22005L2P

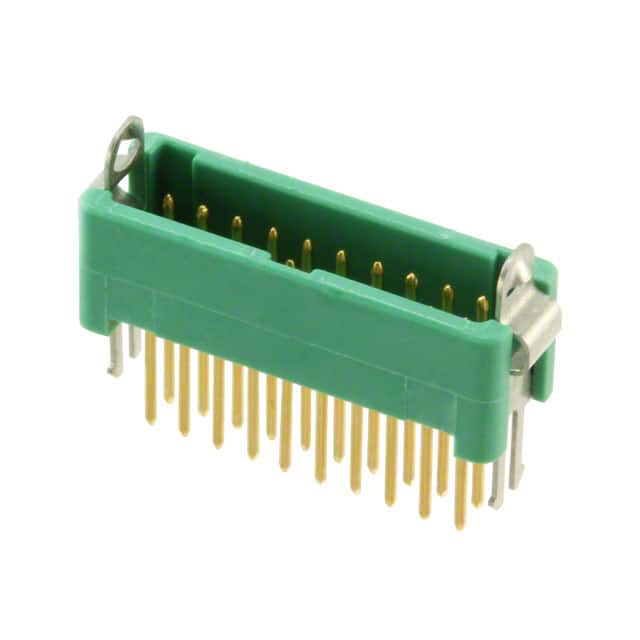

Harwin G125-MV22005L2P is a 20 position (10+10) male pin header with 1.25mm pitch, through hole termination, and a shrouded design with latch lock.

✓ Total Stock: 20 pcs

$ Price Range: $4.82 - $7.85

G125-MV22005L2P Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	20 pcs On Request	20 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

G125-MV22005L2P Description

Short technical summary and product information.

The Harwin G125-MV22005L2P is a 20-position male pin header from the Gecko Latch series, featuring a 1.25mm pitch and a double-row straight (vertical) through-hole configuration. The connector is fully shrouded with a 4-wall design and includes a latch lock fastening system for secure mating. Contacts are gold-plated phosphor bronze (signal contacts are beryllium copper per datasheet) with a circular contact shape, rated for 2A per contact. The insulation is green polyamide (PA4T), glass filled and halogen free, with a flammability rating of UL94 V-0. The operating temperature range is -65°C to 150°C. Additional features include board lock and pick-and-place capabilities, making it suitable for automated assembly. This connector is designed for board-to-board or cable-to-board applications.

G125-MV22005L2P Quick Information

Product Type: Header, Male Pins

Series: G125

Canonical Name: Harwin Gecko Latch 20 Position 1.25mm Pitch Male Pin Header, Through Hole, Shrouded

Subcategory: Shrouded Header

G125-MV22005L2P Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

G125-MV22005L2P Estimated Pricing

Qty	Low	High
1+	$7.85	$7.85
10+	$6.67	$6.67
100+	$5.67	$5.67
500+	$5.06	$5.06
1,000+	$4.82	$4.82

Estimated market price range - modelled values for guidance only, not live distributor offers.

G125-MV22005L2P Features

20 position double row male header.
1.25mm pitch with through hole termination.
Shrouded 4-wall design with latch lock.
Gold plated contacts rated for 2A.
Halogen free UL94 V-0 rated insulation.

G125-MV22005L2P Applications

Board-to-board interconnect in compact electronics.
Cable-to-board connections in industrial systems.
High-reliability applications requiring secure latching.
Automated assembly with pick-and-place capability.

G125-MV22005L2P FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the G125-MV22005L2P have?

20 positions arranged in 2 rows (10+10).

What is the pitch of this connector?

1.25mm (0.049 inches).

What is the current rating per contact?

2A per contact.

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-65°C to 150°C.

Is the connector RoHS compliant?

RoHS3 compliant (unverified).

What is the insulation material and flammability rating?

Polyamide (PA4T), glass filled, halogen free, rated UL94 V-0.

Category	Headers, Male Pins
Manufacturer Name	Harwin Inc.
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	8.00µin (0.203µm)
Contact Length	4.50mm (0.177")
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2A per Contact
Fastening Type	Latch Lock
Features	Board Lock, Pick and Place
Insulation Color	Green
Insulation Height	4.90mm (0.193")
Insulation Material	Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Lead Spacing	1.25 mm
Lead Style	Pc-Tail
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-65°C ~ 150°C
Pitch	1.25mm (0.049")
Row Spacing	0.049" (1.25mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Tape & Reel	Yes
Termination	Solder
