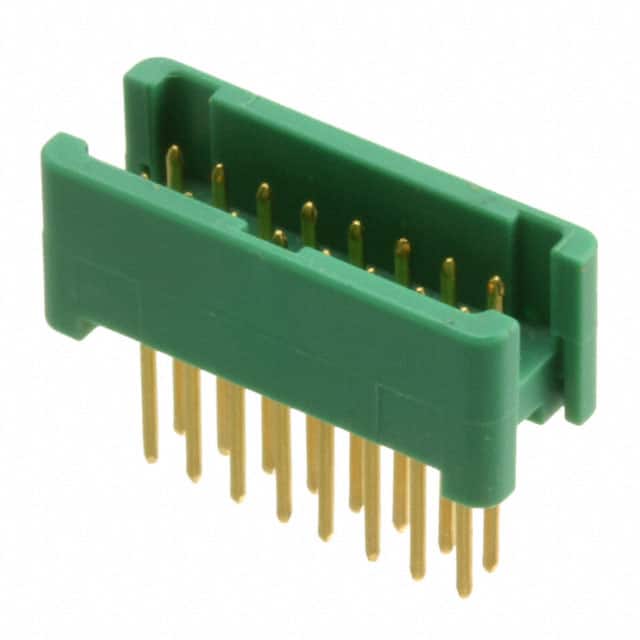

G125-MV21605L0P CONN HEADER VERT 16POS 1.25MM. Through-hole shrouded header with gold contacts, rated for 2A per contact, UL94 V-0.
Mfr Part #:

G125-MV21605L0P

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
CONN HEADER VERT 16POS 1.25MM. Through-hole shrouded header with gold contacts, rated for 2A per contact, UL94 V-0.
✓ Total Stock: 73 pcs
$ Price Range: $3.69 - $3.88

G125-MV21605L0P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
73 pcs
On Request
73 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

G125-MV21605L0P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Failure Rate
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

G125-MV21605L0P Description

Short technical summary and product information.

The Harwin G125-MV21605L0P is a 16-position (2x8) male pin header from the Gecko G125 series. It features a 1.25mm pitch, through-hole mounting with solder termination, and a fully shrouded 4-wall design for robust board-to-board or cable connections. Contacts are phosphor bronze with 8µin gold plating, rated for 2A per contact. The operating temperature range spans -65°C to 150°C. Insulation material is halogen-free polyamide PA4T glass filled, with UL94 V-0 flammability rating. Additional features include board lock and pick-and-place cap.

G125-MV21605L0P Quick Information

Product Type: Header, Male Pins
Series: Gecko G125
Canonical Name: 16 Position Header, Male Pins, Through Hole, 1.25mm Pitch, Shrouded, Gecko G125 Series
Subcategory: Shrouded Header

G125-MV21605L0P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

G125-MV21605L0P Estimated Pricing

Qty Low High
1,000+ $3.88 $3.88
2,000+ $3.69 $3.69

Estimated market price range - modelled values for guidance only, not live distributor offers.

G125-MV21605L0P Features

  • 16-position 2-row through-hole header.
  • 1.25mm pitch, shrouded 4-wall design.
  • Gold-plated phosphor bronze contacts.
  • Rated for 2A per contact current.
  • Operating temperature -65°C to 150°C.

G125-MV21605L0P Applications

  • Board-to-board and cable connections.
  • High-reliability Gecko series applications.
  • Suitable for compact electronic assemblies.

G125-MV21605L0P FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

16 positions in a 2-row (2x8) configuration.

What is the pitch of the Harwin G125-MV21605L0P?

1.25mm (0.049") pitch.

What is the current rating?

2A per contact.

What is the mounting type?

Through-hole mounting with solder termination.

What is the operating temperature range?

-65°C to 150°C.

What is the contact finish?

Gold plating, 8µin (0.203µm) thickness over phosphor bronze.

What insulation material is used?

Polyamide (PA4T), Nylon 4T, glass filled, halogen free.
