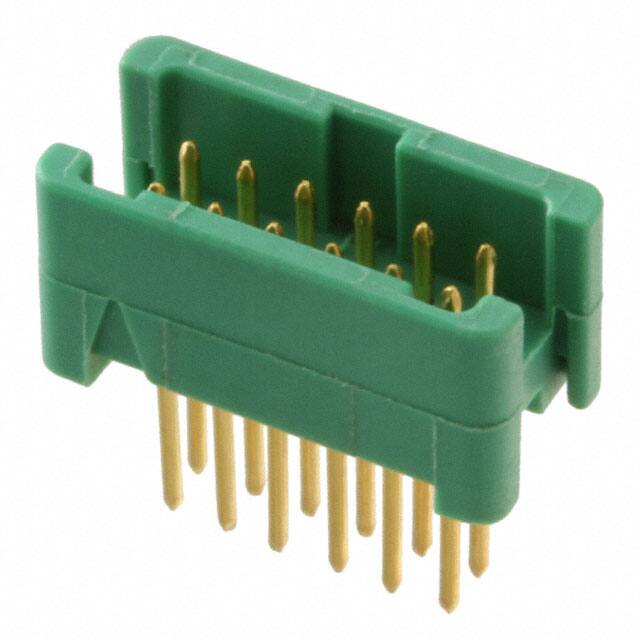

G125-MV21205L0P Header, Male Pins, 12 Positions, 1.25mm Pitch, Through Hole, Shrouded, Gold Contacts.
Mfr Part #:

G125-MV21205L0P

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
Header, Male Pins, 12 Positions, 1.25mm Pitch, Through Hole, Shrouded, Gold Contacts.
✓ Total Stock: 42 pcs
$ Price Range: $9.92

G125-MV21205L0P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
42 pcs
On Request
42 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

G125-MV21205L0P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

G125-MV21205L0P Description

Short technical summary and product information.

The Harwin G125-MV21205L0P is a 12-position male header from the Gecko G125 series of high-reliability connectors. It features a 1.25mm pitch with 2 rows, shrouded 4-wall design, and through hole solder termination. Contacts are gold plated (8µin) and rated for 2A per contact. The header includes board lock and pick-and-place features for automated assembly. The insulator is made of halogen-free glass-filled polyamide (PA4T) with a UL94 V-0 flammability rating. Operating temperature range is -65°C to 150°C. Packaging is tape strips with a pick-and-place cap. This connector is suitable for board-to-board and cable-to-board applications where high density and reliability are required.

G125-MV21205L0P Quick Information

Product Type: Header, Male Pins
Series: G125
Canonical Name: Harwin G125-MV21205L0P Header, Male Pins, 12 Position, 1.25mm Pitch, Through Hole
Subcategory: Shrouded Header

G125-MV21205L0P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

G125-MV21205L0P Estimated Pricing

Qty Low High
1,000+ $9.92 $9.92

Estimated market price range - modelled values for guidance only, not live distributor offers.

G125-MV21205L0P Features

  • 12-position 2-row shrouded header.
  • 1.25mm pitch for high-density designs.
  • Gold plated contacts for reliability.
  • Rated 2A per contact at -65 to 150°C.
  • Through hole with board lock and pick-and-place.

G125-MV21205L0P Applications

  • Board-to-board and cable-to-board interconnects.
  • High-reliability industrial and aerospace applications.
  • Compact electronic assemblies where density is critical.
  • Automated SMT assembly with pick-and-place cap.

G125-MV21205L0P FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the G125-MV21205L0P have?

12 positions arranged in 2 rows.

What is the pitch of the G125-MV21205L0P?

1.25mm (0.049") pitch between contacts and rows.

What is the current rating per contact?

2A per contact.

What mounting type does this header use?

Through hole solder termination.

What is the operating temperature range?

-65°C to 150°C.

What is the insulation material and flammability rating?

Polyamide (PA4T) glass filled halogen free, UL94 V-0.

Is the connector shrouded?

Yes, it is fully shrouded with a 4-wall design.
