| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

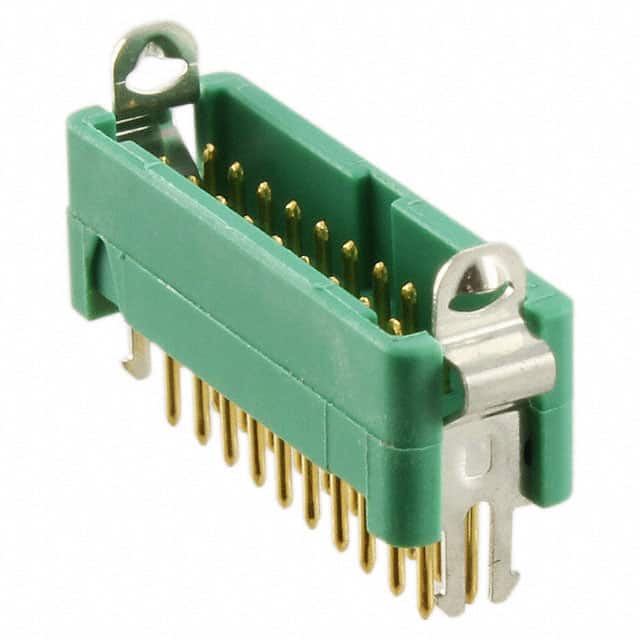

The Harwin G125-MV12005L1P is a 20 position, 2 row through hole header from the Gecko G125 series. It features a 1.25mm pitch and male pins with gold plating over phosphor bronze contacts. The connector is fully shrouded with a 4-wall design and includes a latch lock for secure mating. It is rated for 2A per contact and operates over a temperature range of -65°C to 150°C. The housing is made of halogen-free polyamide (PA4T) with a UL94 V-0 flammability rating. Additional features include board lock and pick and place capabilities. This header is suitable for board-to-board and cable-to-board interconnections in high-reliability applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.16 | $8.16 |
| 10+ | $6.93 | $6.93 |
| 100+ | $5.89 | $5.89 |
| 500+ | $5.26 | $5.26 |
| 1,000+ | $5.01 | $5.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
1.25mm.
2A per contact.
Through hole.
-65°C to 150°C.
Gold with thickness 0.203µm (8.00µin).
Yes, fully shrouded with 4-wall design and latch lock.
