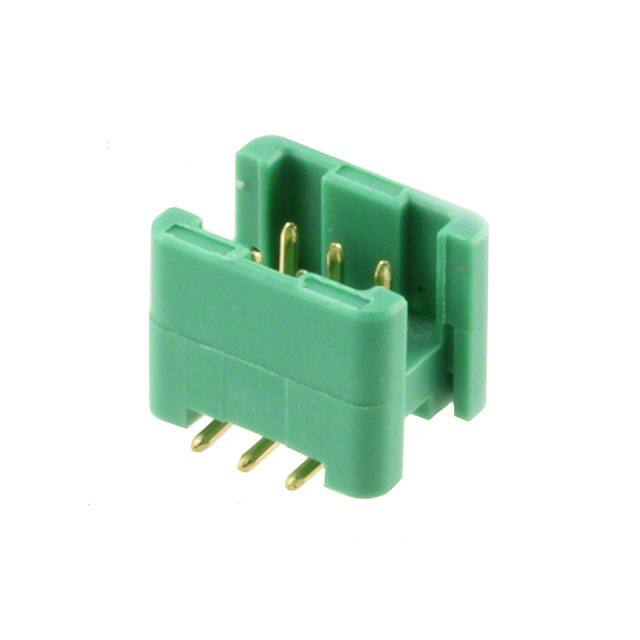

G125-MS10605L0P 25mm pitch, 6-position shrouded header with male pins, designed for surface mount applications.
Mfr Part #:

G125-MS10605L0P

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
25mm pitch, 6-position shrouded header with male pins, designed for surface mount applications.
✓ Total Stock: 5 pcs
$ Price Range: $4.24 - $6.92

G125-MS10605L0P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

G125-MS10605L0P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Failure Rate
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

G125-MS10605L0P Description

Short technical summary and product information.

The Harwin Gecko G125-MS10605L0P is a high-reliability rectangular connector from the Gecko G125 series. It features 6 positions (2 rows) with 1.25mm pitch and row spacing, offering a compact solution for board-to-board or cable interconnections.



Rated at 2A per contact and operating over -65°C to 150°C, the connector uses gold-plated phosphor bronze contacts and a halogen-free glass-filled polyamide insulator. The 4-wall shrouded design protects the pins, while pick-and-place capability and solder retention features simplify automated assembly.



Mounting type is surface mount with solder termination. The housing measures 4.90mm insulation height and has a UL94 V-0 flammability rating.

G125-MS10605L0P Quick Information

Product Type: Header
Series: Gecko G125
Canonical Name: 6 Position Shrouded Header, Male Pins, Surface Mount, 1.25mm Pitch
Subcategory: Header, Male Pins

G125-MS10605L0P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

G125-MS10605L0P Estimated Pricing

Qty Low High
1+ $6.92 $6.92
10+ $5.88 $5.88
100+ $4.99 $4.99
500+ $4.46 $4.46
1,000+ $4.24 $4.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

G125-MS10605L0P Features

  • 6-position shrouded header with 1.25mm pitch.
  • Surface mount with solder termination.
  • Rated 2A per contact, gold plated.
  • -65°C to 150°C operating range.
  • Pick-and-place and solder retention features.

G125-MS10605L0P Applications

  • Board-to-board interconnection in compact devices.
  • Cable-to-board harness assemblies.
  • High-reliability industrial and aerospace systems.
  • Automated surface mount assembly lines.

G125-MS10605L0P FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of this connector?

The pitch is 1.25mm.

How many positions does this header have?

This header has 6 positions.

What is the current rating per contact?

The current rating is 2A per contact.

What is the mounting type?

The mounting type is Surface Mount (SMD).

Is this connector shielded?

Yes, it features a shrouded design (4-wall).
