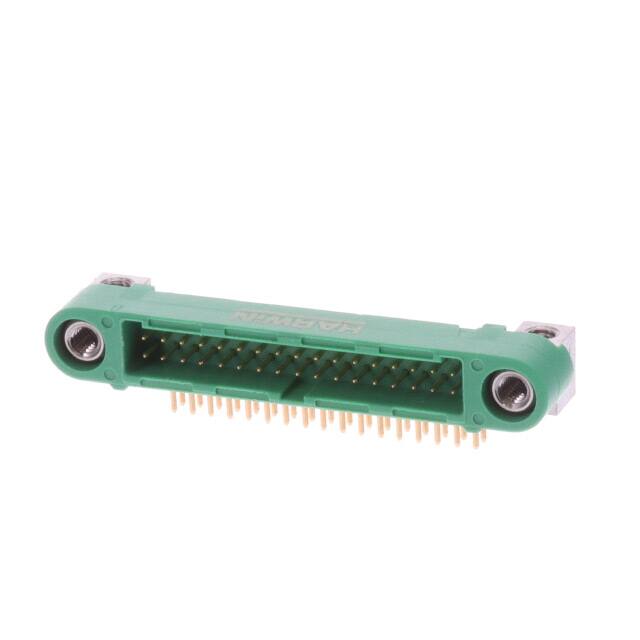

The G125-MH13405M4P is a 34-position (2 row) male pin header from Harwin's Gecko-SL series. It features a 1.25mm pitch, through hole right angle mounting, and robust screw-lock fastening for secure connections. The connector is fully shrouded with a 4-wall design and includes mating flanges and polarizing keys for alignment.
Electrical ratings include 2A current capacity and 450V voltage rating, with an operating temperature range of -65°C to 150°C. Contacts are made of phosphor bronze with gold finish (0.203µm), while the insulator is polyamide (PA4T) glass filled and halogen free, rated UL94 V-0.
This connector is suitable for board-to-board or cable-to-board applications, offering reliable performance in demanding environments. The right-angle orientation saves board space, and the screw-lok mechanism provides secure mating with corresponding connectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $31.84 | $31.84 |
| 10+ | $27.05 | $27.05 |
| 20+ | $26.37 | $26.37 |
| 50+ | $25.91 | $25.91 |
| 100+ | $23.16 | $23.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 34 positions arranged in 2 rows.
The pitch is 1.25 mm.
The current rating is 2 A per contact.
The voltage rating is 450 V.
The connector is through hole, right angle mount.
The operating temperature range is -65°C to 150°C.
The connector uses screw lock fastening.
