| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

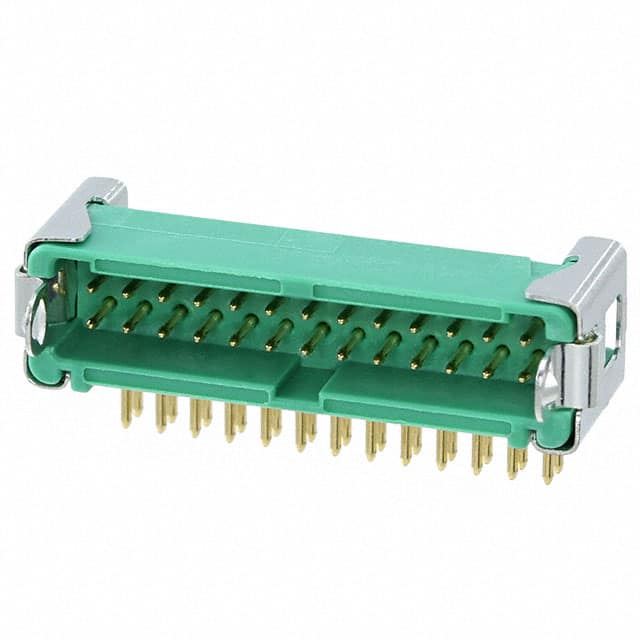

The Harwin G125-MH12605L3P is a male header connector from the Gecko G125 series, designed for high-reliability applications. It features 26 positions arranged in a dual-in-line (DIL) configuration (13+13) with a 1.25mm pitch. The connector is right-angle mounted and through-hole terminated, with solder retention for secure PCB attachment. The housing is shrouded with four walls and includes a latch lock fastening system for secure mating with female counterparts. The insulation is made of halogen-free glass-filled polyamide (PA4T) in green color, rated UL94 V-0 for flammability.
Electrical ratings include a current rating of 2A per contact and a voltage rating of 250V. Contacts are made of phosphor bronze with gold plating (8µin thickness) for reliable signal integrity. The operating temperature range is -65°C to 150°C. The connector is suitable for board-to-board or cable-to-board applications, offering a compact 1.25mm pitch for space-constrained designs.
The connector is packaged in tape strips for automated assembly. It is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). The G125 series is known for its high reliability and is used in industrial, automotive, and aerospace applications where secure connections are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.55 | $20.55 |
| 10+ | $17.46 | $17.46 |
| 20+ | $16.86 | $16.86 |
| 50+ | $16.46 | $16.46 |
| 100+ | $14.84 | $14.84 |
| 500+ | $13.25 | $13.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26 positions (13+13).
1.25mm.
2A per contact.
250V.
Through hole, right angle.
-65°C to 150°C.
Gold, 8µin thickness.
