| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

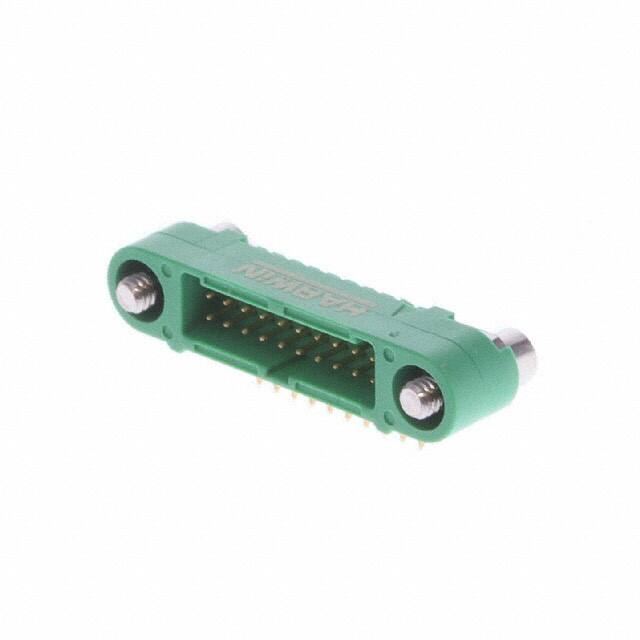

The G125-MH12005M3P is a 20-position (10+10) male pin header from Harwin's Gecko-SL series, featuring a 1.25mm pitch. This right-angle through-hole connector is designed for high-reliability board-to-board or cable-to-board interconnections.
Key specifications include a current rating of 2A per contact and a voltage rating of 450V. Contacts are gold plated for reliable signal integrity. The insulation is glass-filled halogen-free polyamide (PA4T/Nylon 4T) with a green color and a flammability rating of UL94 V-0. The operating temperature range is -65°C to 150°C.
This connector is fully shrouded with four walls and includes features like jackscrews, a mating flange, pick and place pads, and a polarizing key. It uses a Hex Socket Screw-Lok reverse fixing mechanism for secure attachment.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.23 | $26.23 |
| 10+ | $22.29 | $22.29 |
| 20+ | $22.05 | $22.05 |
| 50+ | $21.38 | $21.38 |
| 100+ | $20.50 | $20.50 |
| 200+ | $20.12 | $20.12 |
| 500+ | $19.87 | $19.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 20 positions (10+10) in a 2-row configuration.
The pitch is 1.25mm (0.049 inches).
It is rated for 2A per contact.
The voltage rating is 450V.
It is a through hole, right angle mounting type.
The operating temperature range is -65°C to 150°C.
The insulation is green glass-filled halogen-free polyamide with a UL94 V-0 flammability rating.
