Mfr Part #:

G125-MH11605L1R

Name: G125-MH11605L1R
Brand: Harwin Inc.
SKU: G125-MH11605L1R

Mfr Name: Harwin Inc.

Description:

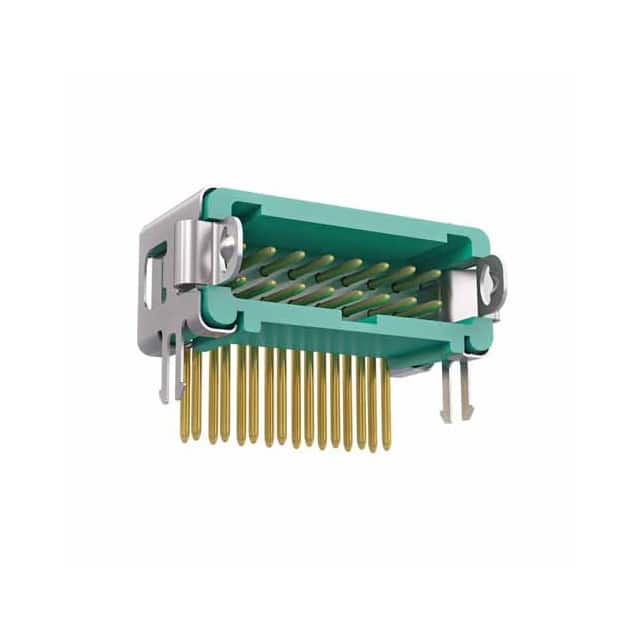

CONN HDR R/A 16POS

Stock on Request

G125-MH11605L1R Description

Short technical summary and product information.

CONN HDR R/A 16POS

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Harwin Inc.
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	8.00碌in (0.203碌m)
Contact Length	0.130" (3.30mm)
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2A
Fastening Type	Latch Holder
Features	Board Lock
Insulation Color	Green
Insulation Height	0.218" (5.55mm)
Insulation Material	Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	0.049" (1.25mm)
Row Spacing	0.049" (1.25mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	600VAC/DC
