| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Power Positions | |
| Number of Rows | |
| Number of Signal Positions | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

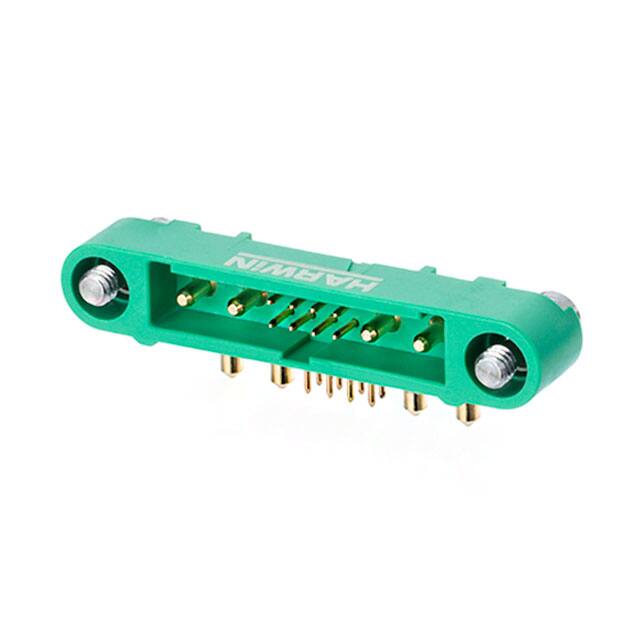

The G125-MH10805M3-2AD2ADP is a Gecko-MT mixed technology male plug connector from Harwin. It features 12 positions arranged as 2 power, 8 signal, and 2 power contacts, with a 1.25mm pitch and 1.25mm row spacing. The connector is shrouded with a 4-wall design and includes a hex socket screw-lok reverse fix for secure mating.
Signal contacts are rated for 2A, while power contacts are rated for 10A, with a voltage rating of 450V. The operating temperature range is -65°C to 150°C. Contacts are made of beryllium copper (signal) and gold over nickel plating, with insulation material of halogen-free polyamide (PA4T) rated UL94 V-0.
Mounting is through hole, right angle with solder termination. The connector features jackscrews, mating flange, pick and place capability, and polarizing key. It is suitable for board-to-board or cable applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $90.17 | $90.17 |
| 10+ | $76.65 | $76.65 |
| 20+ | $76.63 | $76.63 |
| 50+ | $75.66 | $75.66 |
| 100+ | $65.17 | $65.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions: 8 signal and 4 power.
1.25mm (0.049").
Signal contacts: 2A; power contacts: 10A.
450V.
Through hole, right angle.
-65°C to 150°C.
Screw lock (hex socket screw-lok reverse fix).
