| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

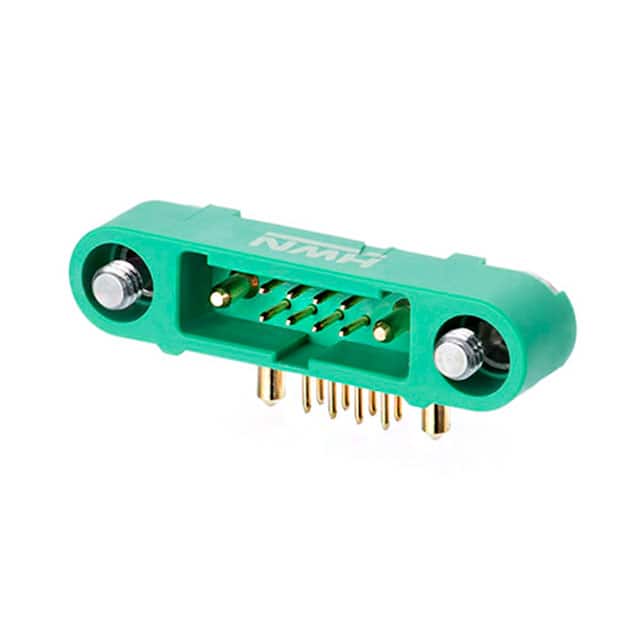

The Harwin G125-MH10805M3-1AD1ADP is a 10-position (8 signal + 2 power) male pin header from the Gecko-MT series, designed for high-reliability interconnects. It features a 1.25mm pitch, right-angle orientation, and through-hole solder termination. The connector is fully shrouded with a 4-wall design and includes a hex socket screw-lock for secure mating. Key electrical ratings include 2A per signal contact, 10A per power contact, and a voltage rating of 450V. The operating temperature range is -65°C to 150°C.
The header is constructed with a Polyamide (PA4T) glass-filled halogen-free insulator rated UL94 V-0, and phosphor bronze contacts with gold finish. The contact arrangement includes two power contacts with 3.5mm termination length and eight signal contacts with 3.3mm length. The connector also features jackscrews, a mating flange, pick-and-place capability, and a polarizing key for correct orientation.
This connector is suitable for board-to-board or cable-to-board applications requiring high reliability. It is commonly used in industrial, aerospace, and defense systems where secure connections and mixed signal/power requirements are necessary.
| Qty | Low | High |
|---|---|---|
| 1+ | $78.73 | $78.73 |
| 10+ | $67.21 | $67.21 |
| 20+ | $63.88 | $63.88 |
| 50+ | $57.62 | $57.62 |
| 100+ | $56.45 | $56.45 |
| 200+ | $56.44 | $56.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions (8 signal + 2 power).
1.25mm.
2A for signal contacts, 10A for power contacts.
450V.
Through hole, right-angle orientation.
-65°C to 150°C.
Gold.
