| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Lead Spacing | |
| Length | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Shielding | |
| Storage Temperature |

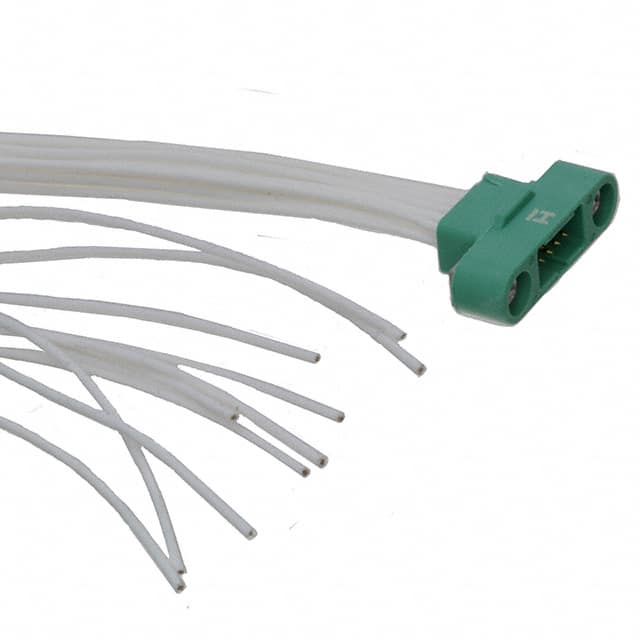

The G125-MC11005M1-0450L is a 10-position, 2-row rectangular cable assembly from Harwin's Gecko G125 series. This high-reliability connector features a male plug terminated to individual wire leads via crimp contacts, providing a secure cable-to-board or cable-to-cable interconnection. The assembly has a 1.25mm pitch, 450mm cable length, and is unshielded with white individual wires.
Key design elements include a polarizing key for correct mating orientation and a screw-lock mechanism (Screw-Lok) for robust, vibration-resistant retention. The contacts are made of beryllium copper with gold plating, ensuring reliable signal integrity. The cable termination method is crimp, and the assembly is fully shrouded. Ready-made cable assemblies are supplied backpotted for added strain relief.
This cable assembly is part of the Gecko series, designed for compact, high-reliability applications in industrial, aerospace, and other demanding environments. The 1.25mm pitch allows for space-saving designs while maintaining high contact density.
| Qty | Low | High |
|---|---|---|
| 1+ | $49.91 | $49.91 |
| 10+ | $42.51 | $42.51 |
| 20+ | $40.09 | $40.09 |
| 50+ | $38.71 | $38.71 |
| 100+ | $36.72 | $36.72 |
| 200+ | $34.46 | $34.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The cable length is 450mm (1.48 feet).
The pitch is 1.25mm (0.049 inches).
It has 10 positions arranged in 2 rows.
It is a male plug to individual wire leads.
No, it is unshielded.
Polarizing key and screw lock.
RoHS3 Compliant (unverified, low confidence).
