| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Termination |

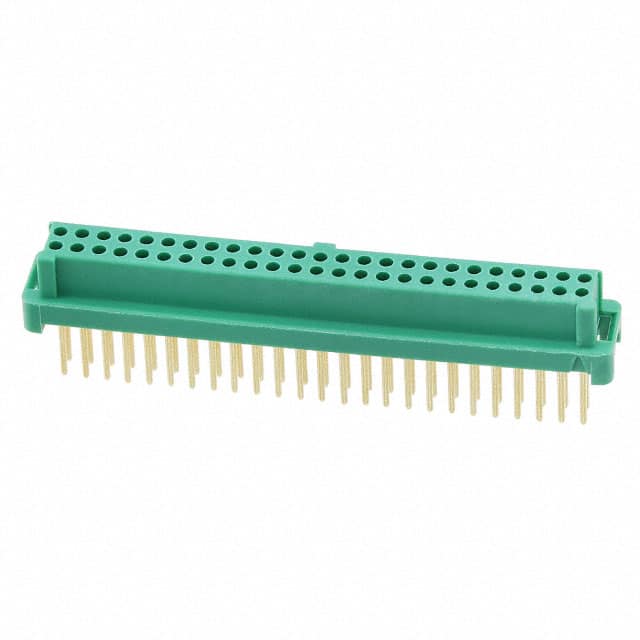

The Harwin G125-FV25005L0P is a 50-position receptacle connector from the Gecko G125 series of high-reliability rectangular connectors. It features a 1.25mm pitch with 1.25mm row spacing, two rows, and all positions loaded. The connector uses female socket contacts made of beryllium copper with a gold over nickel finish (0.203µm gold thickness). It is rated for 2A continuous current and operates over a temperature range of -65°C to 150°C.
The receptacle has a green insulation body with a height of 5.25mm and a contact length of 4.50mm. It uses a latch holder fastening type and includes pick and place and polarizing key features. The connector is designed for board-to-board or cable applications and is terminated via through hole solder. The insulation material has a UL94 V-0 flammability rating.
This connector is part of the Gecko G125 family, which is designed for compact, high-reliability interconnections in demanding environments. The through hole mounting provides robust mechanical attachment, and the gold-plated contacts ensure reliable signal integrity.
| Qty | Low | High |
|---|---|---|
| 250+ | $37.54 | $37.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 50 positions, all loaded, arranged in 2 rows.
The pitch is 1.25mm (0.049 inches).
The current rating is 2A.
The mounting type is through hole with solder termination.
The operating temperature range is -65°C to 150°C.
The contacts have a gold finish with a thickness of 0.203µm (8.00µin) over nickel.
