| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination |

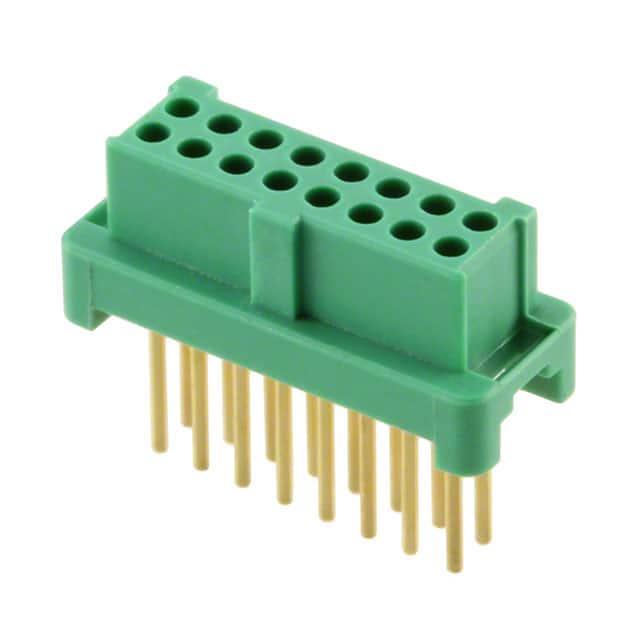

The Harwin G125-FV21605L0P is a 16 position female receptacle connector from the Gecko Latch series, designed for high-reliability board-to-board or cable-to-board applications. It features a 1.25mm pitch and a double-row straight through-hole configuration.
The connector has a current rating of 2A per contact and an operating temperature range of -65°C to 150°C. Contacts are made of beryllium copper with gold over nickel plating (8µin gold). The housing is green with UL94 V-0 flammability rating and includes a latch holder for secure mating and pick-and-place features for automated assembly.
The Gecko Latch series is designed for secure interconnection with male plug connectors using easy-to-release latches. This receptacle is suitable for applications requiring compact, high-density interconnects in harsh environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.31 | $19.31 |
| 10+ | $16.74 | $16.74 |
| 20+ | $15.86 | $15.86 |
| 50+ | $15.63 | $15.63 |
| 100+ | $13.79 | $13.79 |
| 200+ | $12.87 | $12.87 |
| 500+ | $12.60 | $12.60 |
| 1,000+ | $11.95 | $11.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions (8+8).
1.25mm (0.049").
2A per contact.
Through hole with solder termination.
-65°C to 150°C.
Gold over nickel, 8µin thickness.
Gecko Latch series.
