| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Termination |

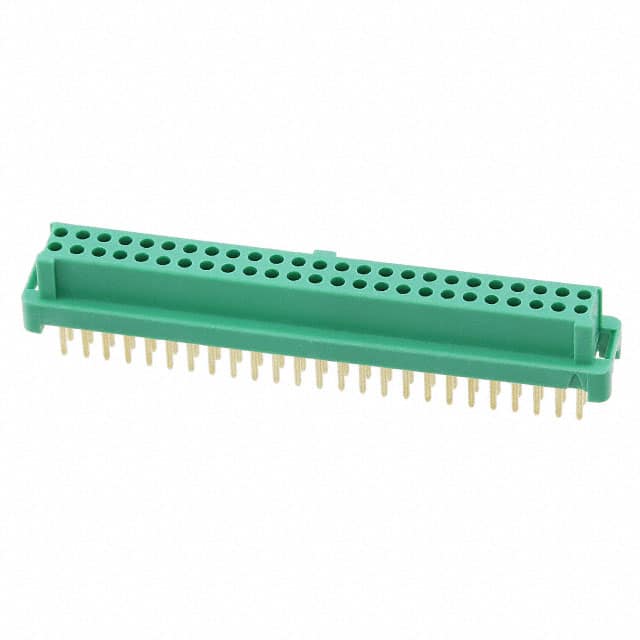

The G125-FV15005L0P is a 50-position receptacle from Harwin's Gecko Latch series. It features a double row (2 rows) configuration with a 1.25mm pitch (0.049") and through hole mounting. The connector is designed for board-to-board or cable-to-board interconnection. It has a latch holder fastening type and includes polarizing key and pick-and-place features. The insulation is green with UL94 V-0 flammability rating. Operating temperature range is -65°C to 150°C. Contacts are beryllium copper with gold over nickel finish, 8µin gold thickness. Current rating is 2A. Contact length is 3.00mm. The connector is packaged in tape strips. This receptacle is suitable for high-reliability applications requiring secure interconnection.
| Qty | Low | High |
|---|---|---|
| 1+ | $48.72 | $48.72 |
| 10+ | $41.40 | $41.40 |
| 50+ | $40.72 | $40.72 |
| 100+ | $35.20 | $35.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions.
1.25mm (0.049").
2A.
Through hole.
-65°C to 150°C.
Gold over nickel, 8µin (0.203µm) thickness.
Latch holder.
