| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination |

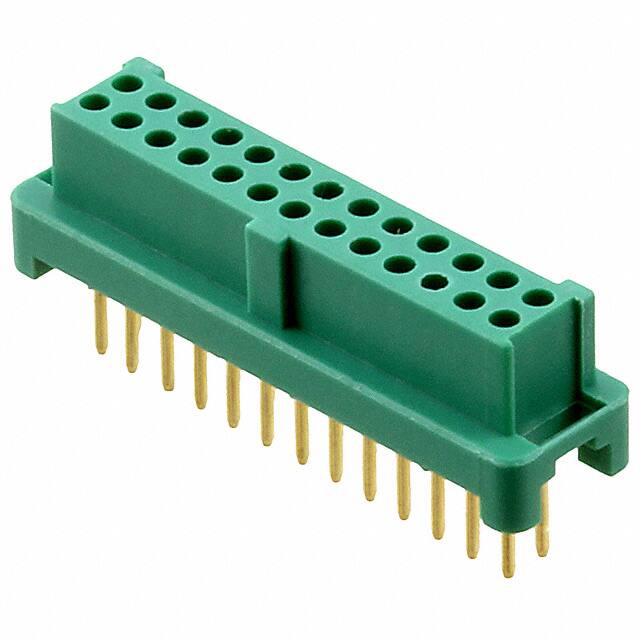

The G125-FV12605L0P is a 26 position (13+13) female receptacle from Harwin's Gecko Latch series, part of the G125 family of 1.25mm pitch high-reliability connectors. This through hole, straight (vertical) connector features 3mm PCB terminations and is designed for board-to-board or cable applications. The receptacle accepts male plug connectors with latches, secured by a latch holder fastening type.
Key specifications include a current rating of 2A, operating temperature range of -65°C to 150°C, and gold plated contacts over beryllium copper with a thickness of 0.203µm (8µin). The insulator is green with UL94 V-0 flammability rating and an insulation height of 5.25mm. The connector includes pick and place and polarizing key features for automated assembly and correct orientation.
Packaged in tape strips with pick and place capability, this connector is suitable for high-reliability applications requiring secure interconnection. The Gecko Latch design provides easy-to-release locking latches for secure mating to male connectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.87 | $26.87 |
| 10+ | $22.83 | $22.83 |
| 20+ | $22.58 | $22.58 |
| 50+ | $21.99 | $21.99 |
| 100+ | $19.41 | $19.41 |
| 200+ | $19.20 | $19.20 |
| 500+ | $17.33 | $17.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26 positions (13+13).
1.25mm (0.049").
2A.
Through hole.
Gold.
-65°C to 150°C.
Latch holder.
