| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

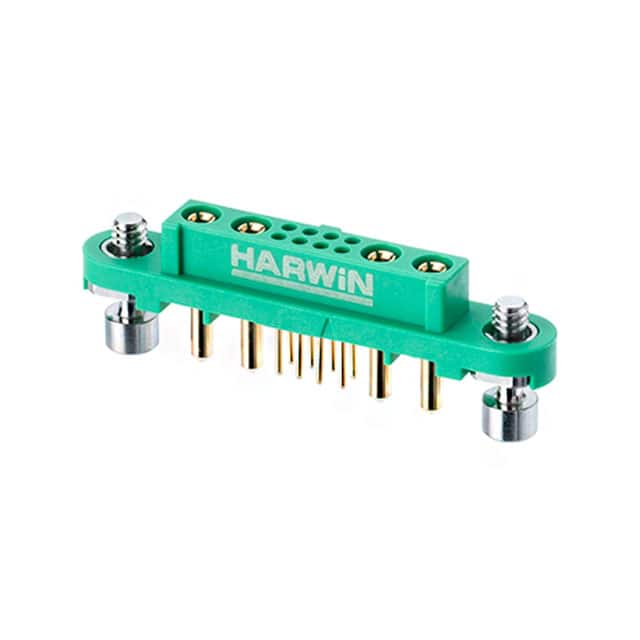

The Harwin G125-FV10805F1-2AB2ABP is a female receptacle from the Gecko-MT series of high-reliability 1.25mm pitch rectangular connectors. This mixed technology connector combines 8 signal contacts and 4 power contacts in a 2-row configuration, with a total of 12 positions. The through hole mounting with solder termination provides a secure mechanical connection to the PCB. The connector features floating screw lock fasteners for robust mating, and includes jackscrews, mating flange, and polarizing key for alignment. The insulation is green with a UL94 V-0 flammability rating, and the insulation height is 5.25mm. Contacts are made of beryllium copper with gold over nickel plating, ensuring reliable signal integrity. The signal contacts are rated for 2A, while the power contacts are rated for 10A at 450V. The operating temperature range is -65°C to 150°C, making it suitable for demanding environments. The connector is designed for board-to-board or cable-to-board applications where mixed power and signal routing is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $78.33 | $78.33 |
| 10+ | $66.58 | $66.58 |
| 20+ | $66.31 | $66.31 |
| 50+ | $65.08 | $65.08 |
| 100+ | $56.60 | $56.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 12 positions: 8 signal contacts and 4 power contacts.
The pitch is 1.25mm (0.049 inches).
Signal contacts are rated at 2A, power contacts at 10A.
The voltage rating is 450V.
The connector uses through hole mounting with solder termination.
The operating temperature range is -65°C to 150°C.
The connector is listed as RoHS3 compliant, but this information is unverified.
