| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Shielding | |
| Termination Style | |
| Wire Gauge |

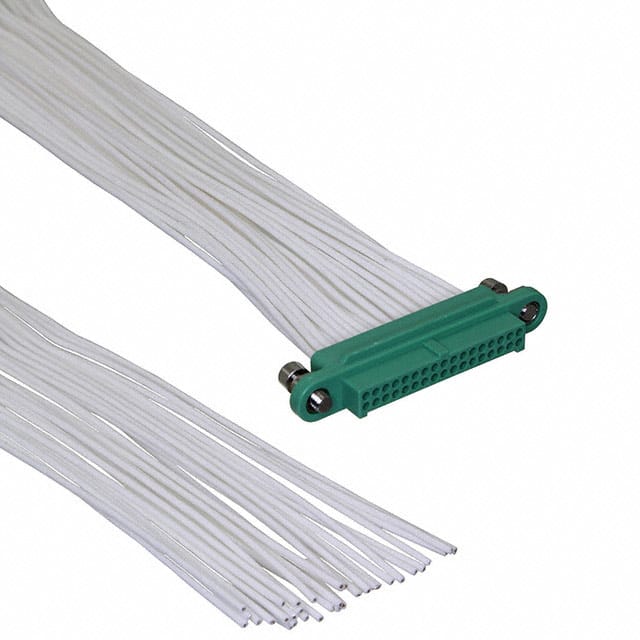

The G125-FC13405F1-0150L is a 34-position (17+17) female receptacle cable assembly from Harwin's Gecko-SL series. It is a single-ended straight cable assembly with 150mm length, using 26 AWG white wire. The connector features a 1.25mm pitch and is designed for high-reliability applications.
The assembly uses crimp termination for individual wire leads. Contacts are gold-plated beryllium copper. The connector includes a polarizing key and Hex Socket Screw-Lok for secure mating. It is unshielded and color-coded white.
Gecko connectors are used in cable-to-cable, cable-to-board, and board-to-board applications requiring high reliability. The ready-made cable assemblies are supplied backpotted for strain relief. The Screw-Lok variant provides robust interconnection.
| Qty | Low | High |
|---|---|---|
| 1+ | $117.21 | $117.21 |
| 10+ | $101.91 | $101.91 |
| 20+ | $94.32 | $94.32 |
| 50+ | $90.98 | $90.98 |
| 100+ | $86.65 | $86.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The cable assembly has 34 positions configured as 17+17 contacts.
The pitch is 1.25mm (0.049").
The cable assembly is 150mm (0.492 feet, 5.91 inches) long.
The wire gauge is 26 AWG.
The contacts are made of beryllium copper with gold finish.
The product is listed as RoHS3 Compliant but this is unverified.
The connector features a polarizing key and a Hex Socket Screw-Lok.
