G125-FC12605F1-0150L

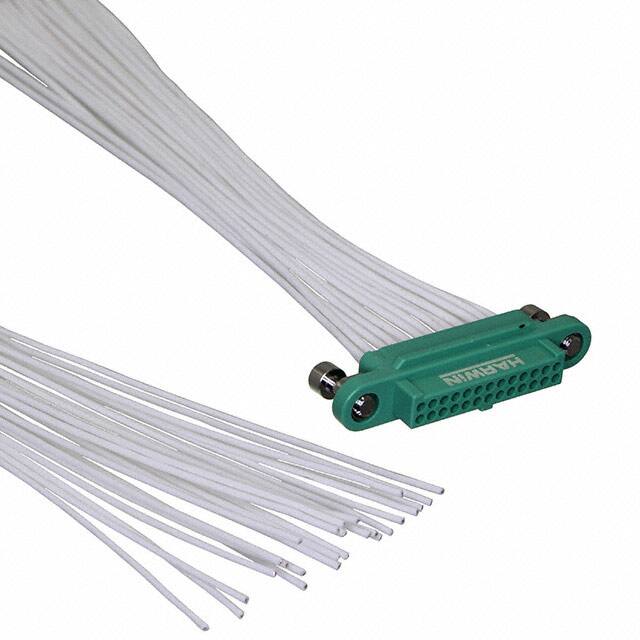

The Harwin G125-FC12605F1-0150L is a Gecko-SL series female receptacle cable assembly designed for high-reliability interconnections. It features 26 positions (13+13) in a double-row configuration with a 1.25mm pitch, providing a compact yet robust connection solution. The assembly uses 26 AWG individual white wires, terminated via crimp contacts with gold plating for reliable conductivity. The cable length is 150mm (5.91 inches), and the assembly is single-ended, meaning it has a connector on one end and individual wires on the other.

This cable assembly is unshielded and includes a polarizing key and a Hex Socket Screw-Lok locking mechanism for secure mating. The connector is a female receptacle, compatible with male headers of the same series. The housing is fully shrouded, and the assembly is backpotted for additional strain relief and sealing, as typical for Harwin ready-made cable assemblies. The Gecko-SL series is suitable for cable-to-cable and cable-to-board applications where high reliability and vibration resistance are required.

The design includes a low profile potting wall, allowing for backpotting if needed. The contacts are individually crimped and can be replaced if necessary. This assembly is RoHS3 compliant and has an MSL of 1 (unlimited). It is commonly used in industrial, aerospace, and defense applications where reliable connections are critical.
