| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Assembly Style | |
| Automotive Grade | |
| Cable Orientation | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Fastening Type | |
| Features | |
| Gender | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Wire Gauge |

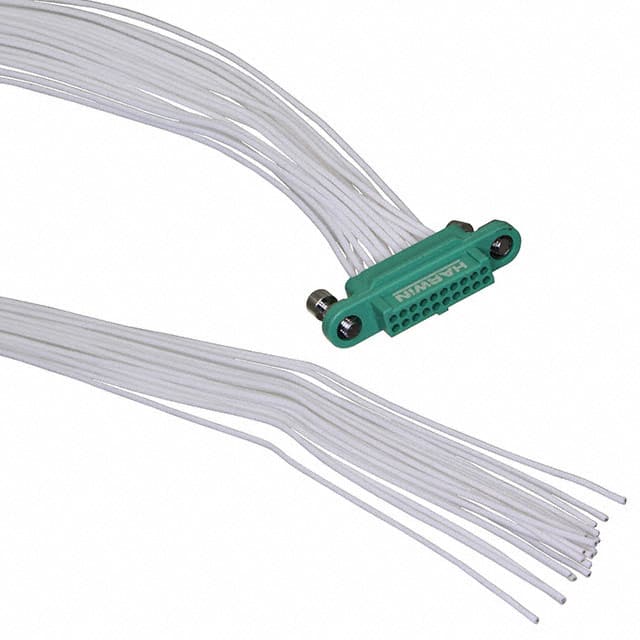

The Harwin G125-FC12005F1-0150L is a Gecko-SL series 20 position (10+10) female receptacle to individual wire leads cable assembly. It features a 1.25mm pitch, double row configuration, and a straight cable orientation. The cable is 150mm long, 26 AWG, unshielded, with individual white wires. Contacts are beryllium copper with hard acid gold plating (98% purity) over nickel. Termination is crimp type. The assembly includes a polarizing key and a hex socket Screw-Lok fastening system for secure mating. It is designed for high-reliability cable-to-cable and cable-to-board interconnections in unsealed, fully shrouded applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $72.52 | $72.52 |
| 10+ | $63.12 | $63.12 |
| 20+ | $58.69 | $58.69 |
| 50+ | $56.62 | $56.62 |
| 100+ | $53.92 | $53.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.25mm.
The cable length is 150mm.
The wire gauge is 26 AWG.
No, it is unshielded.
The contact finish is gold (hard acid gold 98% purity over nickel).
It uses a hex socket Screw-Lok fastening system.
RoHS3 compliance is indicated but unverified.
